BQ24074RGTRG4 - Texas Instruments

Description: Battery Charger Li-Ion 1500mA 4.2V 16-Pin VQFN EP T/R

Download BQ24074RGTRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

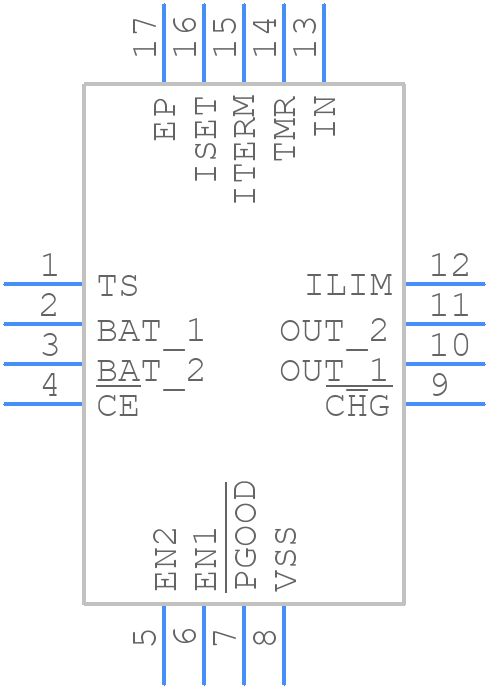

Symbol
BQ24074RGTRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24074RGTRG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT001
click to zoom
3D Models
BQ24074RGTRG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RGT001
click to zoom

BQ24074RGTRG4 Details

  • Manufacturer Part Number:

    BQ24074RGTRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.2 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +10.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24074RGTRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. The application note SLUA444 provides more detailed guidance on input capacitor selection.
  • The BQ24074RGTRG4 is rated for operation from -40°C to 85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal management and heat dissipation in the system design.
  • The BQ24074RGTRG4 is designed to work with lithium-ion (Li-ion) batteries, but it can be used with other battery chemistries such as lithium-polymer (Li-poly) or nickel-metal hydride (NiMH) with some modifications. However, the device's performance and charging algorithm may need to be adjusted accordingly. It's recommended to consult with Texas Instruments or a battery expert for specific guidance.
  • The BQ24074RGTRG4 has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage divider network. The application note SLUA444 provides a detailed example of how to implement OVP using the BQ24074RGTRG4.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24074RGTRG4 Overview

Use the download button to access the BQ24074RGTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
