A good PCB layout for the BQ24075QRGTRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, TI's WEBENCH online design tool can be used to select components and simulate the design.
The BQ24075QRGTRQ1 is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
The BQ24075QRGTRQ1 has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output and connect the sense pin to the device. The device will limit the output current to the programmed value. Consult the datasheet for more information on overcurrent protection.
Yes, the BQ24075QRGTRQ1 is a high-reliability device suitable for use in automotive, industrial, and medical applications. It is built with high-reliability materials and manufacturing processes, and is qualified to various industry standards such as AEC-Q100.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24075QRGTRQ1 Overview

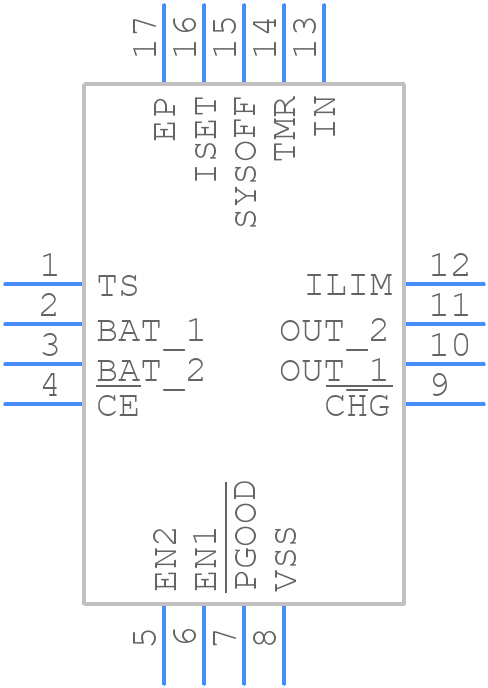

Use the download button to access the BQ24075QRGTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
