A good PCB layout for the BQ24079QWRGTRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the BQ24079QWRGTRQ1 is properly configured for your specific battery chemistry, you need to set the correct charge voltage and current limits. You can do this by programming the device's registers using the I2C interface. Refer to the datasheet for the specific register settings for your battery chemistry.
The BQ24079QWRGTRQ1 has a maximum junction temperature of 125°C. To ensure it operates within a safe temperature range, you should provide adequate heat sinking, such as a thermal pad or a heat sink, and ensure good airflow around the device. You should also avoid blocking the thermal pads on the device.
To troubleshoot issues with the BQ24079QWRGTRQ1, start by checking the device's status registers using the I2C interface. Check for any fault flags or error codes. Also, verify that the input voltage and current are within the recommended operating range. If the issue persists, try resetting the device or checking the PCB layout for any issues.
While the BQ24079QWRGTRQ1 is optimized for specific battery chemistries, it can be used with other chemistries with some modifications. However, you will need to consult with a battery expert to determine the correct charge voltage and current limits for your specific battery chemistry. You may also need to modify the device's configuration registers accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24079QWRGTRQ1 Overview

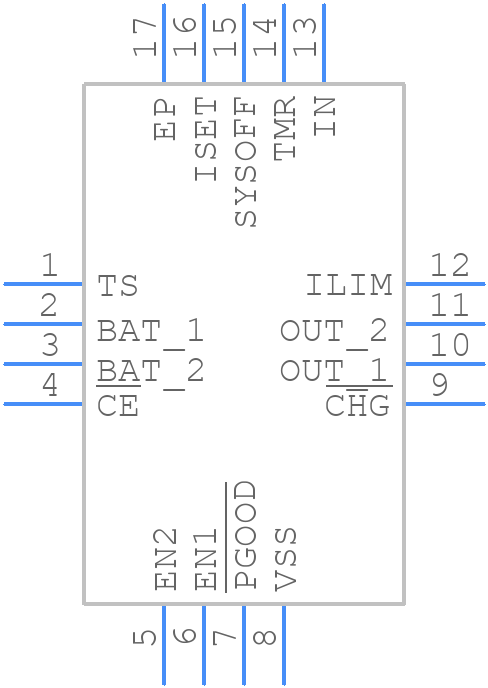

Use the download button to access the BQ24079QWRGTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
