BQ24086DRCR - Texas Instruments

Description: Battery Management 750mA SGL-CHIP Li- I on/Li-Pol Chg Mgmt A 595-BQ24086DRCT

Download BQ24086DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

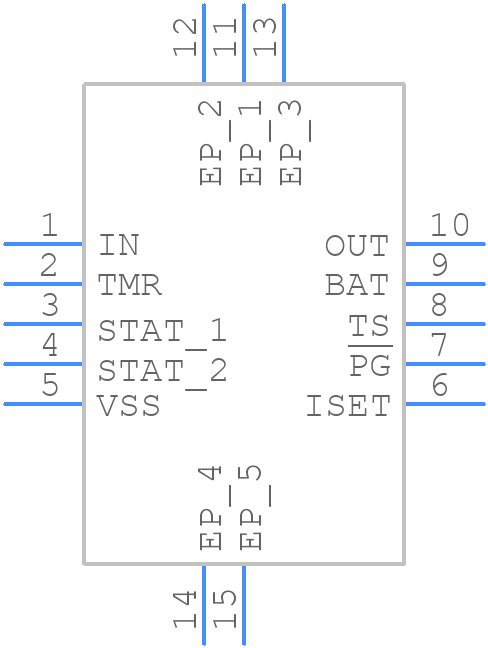

BQ24086DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24086DRCR - Texas Instruments PCB footprint - Other - Other - DRC0010J-1
click to zoom
3D Models
BQ24086DRCR - Texas Instruments - 3D model - Other - DRC0010J-1
click to zoom

BQ24086DRCR Details

  • Manufacturer Part Number:

    BQ24086DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24086DRCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24086DRCR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended layout in the datasheet and application notes.
  • The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, online tools such as TI's Power Stage Designer can help with component selection.
  • The BQ24086DRCR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. The device can operate up to 105°C, but thermal derating is required above 85°C. A thermal analysis should be performed to ensure the device operates within its thermal limits.
  • The BQ24086DRCR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. TI provides guidelines for selecting the resistor value in the datasheet.
  • The BQ24086DRCR is rated for operation up to 105°C, but its performance may degrade at high temperatures. TI recommends derating the device's output current and voltage at high temperatures to ensure reliable operation.
