BQ24087DRCT - Texas Instruments

Description: Battery Management 750mA SGL-CHIP Li- Ion/Li-Pol Chg Mgmt

Download BQ24087DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

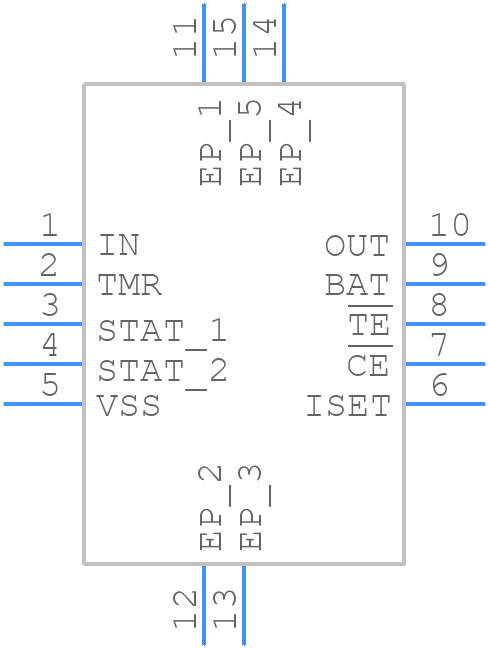

Symbol
BQ24087DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24087DRCT - Texas Instruments PCB footprint - Other - Other - BQ24087DRCT-2
click to zoom
3D Models
BQ24087DRCT - Texas Instruments - 3D model - Other - BQ24087DRCT-2
click to zoom

BQ24087DRCT Details

  • Manufacturer Part Number:

    BQ24087DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    6.5 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24087DRCT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BQ24087DRCT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the bq24087-EVM, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA443 for more information on charging profile optimization.
  • The BQ24087DRCT has an operating ambient temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures. Refer to the datasheet for more information on thermal derating and thermal management.
  • Yes, the BQ24087DRCT is compatible with USB-C PD ports. It supports up to 100W of power delivery and can negotiate power levels with the USB-C PD controller. However, you'll need to ensure that the PD controller is compatible with the BQ24087DRCT and that the system is designed to meet the USB-C PD specification.
  • The BQ24087DRCT has built-in OVP and UVP features, but you'll need to add external components to implement them. Texas Instruments provides a reference design and application note SLUA442 that explains how to implement OVP and UVP using the BQ24087DRCT.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24087DRCT Overview

Use the download button to access the BQ24087DRCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
