BQ24090DGQR - Texas Instruments

Description: 1A, Single Input, Single Cell Li-Ion Battery Charger w/ 10kΩ NTC | Li-ion Linear Battery Charger IC

Download BQ24090DGQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

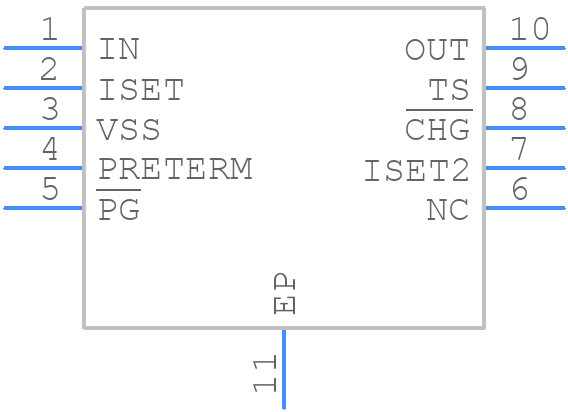

Symbol
BQ24090DGQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24090DGQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - BQ24090DGQR
click to zoom
3D Models
BQ24090DGQR - Texas Instruments - 3D model - Small Outline Packages - BQ24090DGQR
click to zoom

BQ24090DGQR Details

  • Manufacturer Part Number:

    BQ24090DGQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.45 V

  • Input Voltage-Min:

    4.45 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    6.45 V

  • Supply Voltage-Min (Vsup):

    4.45 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24090DGQR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24090DGQR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24090DGQR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24090DGQR is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
  • The BQ24090DGQR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold is set by the voltage on the OVP pin. Consult the datasheet for more information on implementing OVP.
  • The maximum input voltage for the BQ24090DGQR is 18V. However, the device can be operated at higher input voltages with external voltage regulation. Consult the datasheet for more information on input voltage limitations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24090DGQR Overview

Use the download button to access the BQ24090DGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
