BQ24090DGQT - Texas Instruments

Description: 1A, Single Input, Single Cell Li-Ion Battery Charger w/ 10kΩ NTC | Li-ion Linear Battery Charger IC

Download BQ24090DGQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

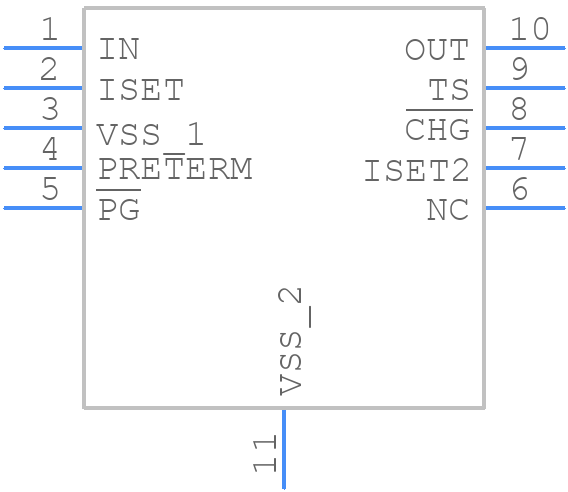

BQ24090DGQT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24090DGQT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
BQ24090DGQT - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

BQ24090DGQT Details

  • Manufacturer Part Number:

    BQ24090DGQT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.45 V

  • Input Voltage-Min:

    4.45 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    6.45 V

  • Supply Voltage-Min (Vsup):

    4.45 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24090DGQT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24090DGQT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24090DGQT depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 4.7uF for the input and 10uF for the output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24090DGQT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and to prevent overheating.
  • The BQ24090DGQT output voltage can be configured using the EN/DVS pin. By connecting a resistor divider network between the EN/DVS pin and the output voltage, the output voltage can be set to a specific value. The datasheet provides a formula to calculate the required resistor values.
  • The BQ24090DGQT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, it's recommended to provide good airflow, use a heat sink if necessary, and ensure that the device is mounted on a PCB with a solid ground plane.
