BQ24091DGQR - Texas Instruments

Description: 1A, Single-Input, Single-Cell Li-Ion Battery Charger with 100kΩ NTC

Download BQ24091DGQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

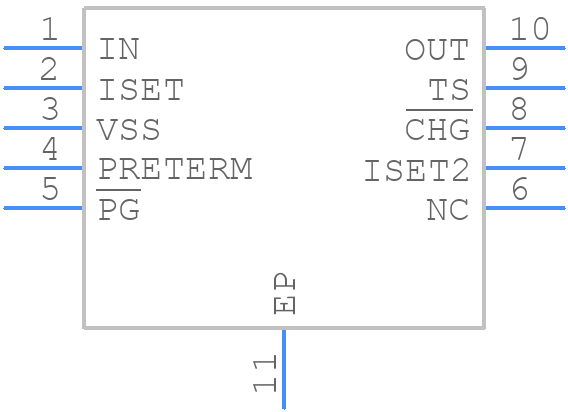

BQ24091DGQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24091DGQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
BQ24091DGQR - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

BQ24091DGQR Details

  • Manufacturer Part Number:

    BQ24091DGQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    HVSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.45 V

  • Input Voltage-Min:

    4.45 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    6.45 V

  • Supply Voltage-Min (Vsup):

    4.45 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24091DGQR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24091DGQR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, TI's WEBENCH online design tool can be used to select components and simulate the design.
  • The BQ24091DGQR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 16V for optimal performance and reliability.
  • The BQ24091DGQR has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the OCP pin. The device will limit the output current to the programmed value when an overcurrent condition is detected.
  • The BQ24091DGQR is rated for operation up to 105°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and application notes to ensure reliable operation in high-temperature environments.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BQ24091DGQR Overview

Use the download button to access the BQ24091DGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
