The recommended layout and placement for the BQ24092DGQR can be found in the Texas Instruments application note SLUA433, which provides guidelines for PCB layout, component placement, and thermal management.
The BQ24092DGQR has a programmable charging profile, and the optimal settings will depend on the specific battery chemistry and application requirements. Consult the datasheet and application notes for guidance on setting the charging profile, and consider consulting with a battery expert or Texas Instruments support for customized recommendations.
The BQ24092DGQR has a maximum junction temperature of 125°C, and thermal management is critical to ensure reliable operation. Ensure good airflow, use thermal vias and thermal pads, and consider using a heat sink or thermal interface material to keep the device within its operating temperature range.
The BQ24092DGQR has built-in OVP and UVP features, but additional external components may be required to customize the protection thresholds. Consult the datasheet and application notes for guidance on implementing OVP and UVP, and consider using external voltage supervisors or protection ICs for added protection.
The BQ24092DGQR is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still essential to ensure compliance. Consult the datasheet and application notes for guidance on EMI and EMC considerations, and consider consulting with an EMI/EMC expert or Texas Instruments support for customized recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24092DGQR Overview

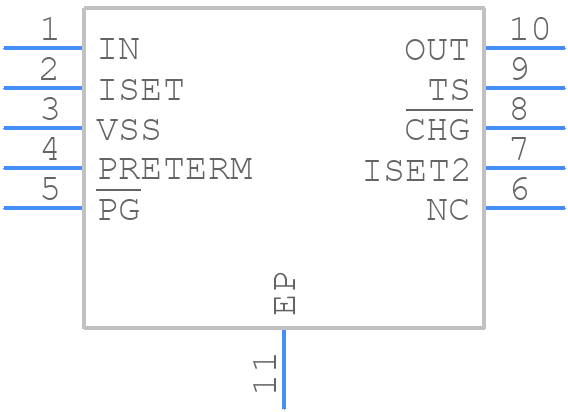

Use the download button to access the BQ24092DGQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
