The recommended layout and placement for the BQ24103ARHLT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, the device should be placed away from high-current carrying traces and heat sources.
To optimize the charging current for your specific battery, you can adjust the resistor values of R_ILIM and R_ISET. The datasheet provides a formula to calculate the charging current based on the resistor values. You can also use the TI's Battery Fuel Gauge software to estimate the optimal charging current for your battery.
The EN (Enable) pin is used to enable or disable the charging function of the BQ24103ARHLT. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. You can use the EN pin to control the charging function through a microcontroller or a switch.
The BQ24103ARHLT has built-in OVP and OTP protection. However, you should still consider adding external protection components, such as a voltage supervisor and a thermal sensor, to ensure robust protection for your design.
The BQ24103ARHLT has a maximum junction temperature of 125°C. To ensure reliable operation, you should consider the thermal design of your board, including the use of thermal vias, heat sinks, and thermal interfaces. You should also ensure that the device is operated within the recommended temperature range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24103ARHLT Overview

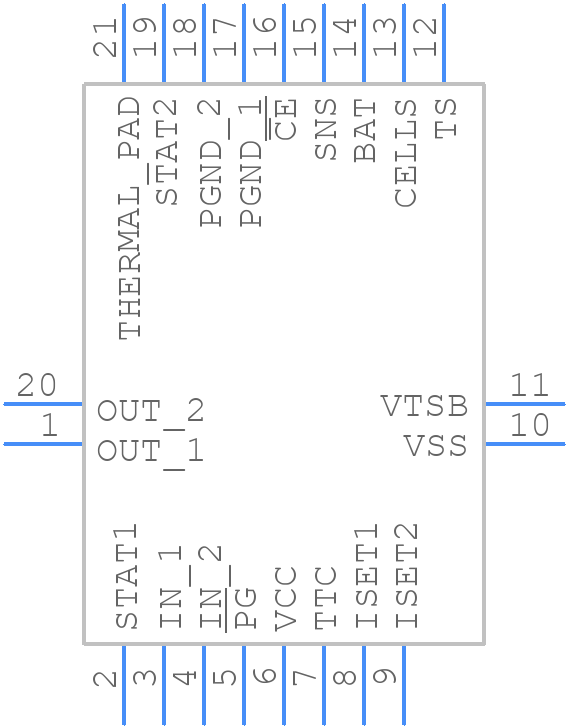

Use the download button to access the BQ24103ARHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
