BQ24120RHLT - Texas Instruments

Description: Synchronous Switch-Mode 1-cell Li-Ion Charger w/2A FET, enhanced EMI performance

Download BQ24120RHLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

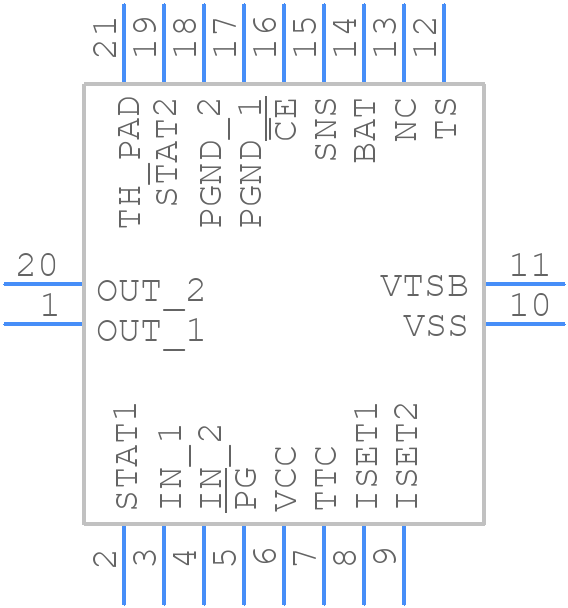

BQ24120RHLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24120RHLT - Texas Instruments PCB footprint - Other - Other - RHL(R-PVQFN-N20)_1
click to zoom
3D Models
BQ24120RHLT - Texas Instruments - 3D model - Other - RHL(R-PVQFN-N20)_1
click to zoom

BQ24120RHLT Details

  • Manufacturer Part Number:

    BQ24120RHLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24120RHLT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ24120RHLT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. TI provides a reference layout in the datasheet.
  • The BQ24120RHLT has a programmable charging current and voltage. To optimize these settings for your specific battery, refer to the battery manufacturer's recommendations and adjust the charging current and voltage accordingly using the I2C interface or external resistors.
  • The BQ24120RHLT is rated for operation from -40°C to 85°C. However, the device can be derated for higher temperatures. Consult the datasheet for thermal derating information.
  • The BQ24120RHLT has built-in OVP and OCP. For OVP, the device will automatically disconnect the input when the input voltage exceeds 6.5V. For OCP, the device will limit the charging current to prevent damage. You can also adjust the OCP threshold using external resistors.
  • The BQ24120RHLT is designed for Li-Ion/Li-Polymer batteries. However, with proper configuration and external circuitry, it can be used with other battery chemistries. Consult the datasheet and application notes for guidance on using the device with non-standard battery chemistries.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24120RHLT Overview

Use the download button to access the BQ24120RHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
