Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24150AYFFR has a programmable charging profile, and Texas Instruments provides a charging profile optimization guide in the application note SLUA443. This guide helps engineers optimize the charging profile for their specific battery chemistry, including lithium-ion, lithium-polymer, and lead-acid batteries.
The BQ24150AYFFR has an operating ambient temperature range of -40°C to 85°C, but it can be derated for higher temperatures. Texas Instruments recommends consulting the thermal design guide in the application note SLUA444 to ensure proper thermal management and derating for high-temperature applications.
The BQ24150AYFFR has built-in OVP and UVP features, but they require external resistors and capacitors to set the threshold voltages. Texas Instruments provides a detailed implementation guide in the application note SLUA442, including equations and examples for calculating the required component values.
Yes, the BQ24150AYFFR is compatible with USB-C PD controllers. Texas Instruments provides a reference design and application note SLUA445 that demonstrates how to use the BQ24150AYFFR with a USB-C PD controller to implement a USB-C charging port with power delivery capabilities.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ24150AYFFR Overview

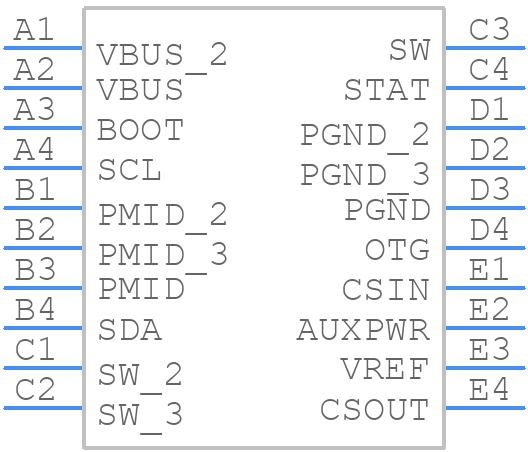

Use the download button to access the BQ24150AYFFR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
