Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24157SYFFR has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using the I2C interface, and the configuration options are described in the datasheet and the application note SLUA443.
The maximum current rating for the BQ24157SYFFR is 2.5A, but it can be limited to a lower value depending on the application requirements. The device has an internal current sense resistor that allows the system to monitor the charging current and limit it to a safe value.
The BQ24157SYFFR has built-in over-voltage protection (OVP) and under-voltage protection (UVP) circuits that detect and respond to abnormal voltage conditions. The device will automatically disconnect the charging input when an OVP or UVP event occurs, and will reconnect when the voltage returns to a safe range.
Yes, the BQ24157SYFFR can be used in a battery-only configuration, where the device is powered solely by the battery and does not require an external power source. In this configuration, the device will still provide battery charging and monitoring functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24157SYFFR Overview

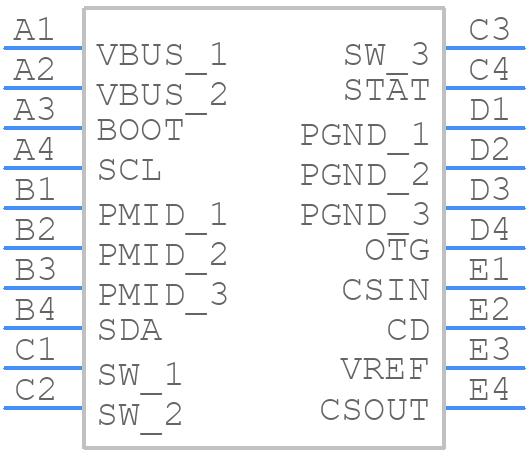

Use the download button to access the BQ24157SYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
