BQ24158YFFT - Texas Instruments

Description: Battery Management Fully Int Sw-Mode 1 Cell Li-Ion Charger

Download BQ24158YFFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

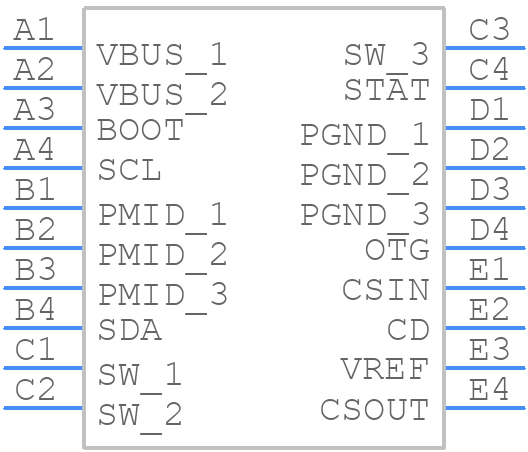

BQ24158YFFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24158YFFT - Texas Instruments PCB footprint - BGA - BGA - YFF(r-xbga-n20)
click to zoom
3D Models
BQ24158YFFT - Texas Instruments - 3D model - BGA - YFF(r-xbga-n20)
click to zoom

BQ24158YFFT Details

  • Manufacturer Part Number:

    BQ24158YFFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.14 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ24158YFFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BQ24158YFFT has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using the I2C interface to set the charging voltage, current, and other parameters. Refer to the datasheet and application notes for specific configuration details.
  • The BQ24158YFFT has an operating ambient temperature range of -40°C to 85°C, but it can be derated for higher temperatures. Refer to the datasheet for specific derating information and thermal management guidelines.
  • The BQ24158YFFT has a built-in OVP feature that can be enabled through the I2C interface. The device can detect overvoltage conditions and disconnect the input power to protect the system. Refer to the datasheet and application notes for specific implementation details.
  • The BQ24158YFFT is designed to work with standard lithium-ion (Li-ion) and lithium-polymer (Li-poly) batteries. However, it may be possible to use the device with non-standard battery chemistries with proper configuration and characterization. Contact Texas Instruments for specific guidance and support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24158YFFT Overview

Use the download button to access the BQ24158YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits
