Texas Instruments recommends a specific layout and placement for the BQ24160ARGET to ensure optimal performance and minimize electromagnetic interference (EMI). A good layout should keep the input and output capacitors close to the IC, and the inductor should be placed close to the IC with the winding axis perpendicular to the PCB. Additionally, the PCB should have a solid ground plane and a separate power plane for the input and output.
To optimize the BQ24160ARGET for low-power applications, you can adjust the switching frequency, reduce the inductor value, and use a low-quiescent-current (Iq) mode. You can also consider using a lower input voltage and optimizing the output voltage to minimize power losses. Additionally, you can use the device's power-save mode to reduce power consumption during light-load conditions.
The BQ24160ARGET has a thermal shutdown feature that protects the device from overheating. However, it's still important to consider thermal management during design. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. You should also consider the thermal resistance of the PCB and the device's power dissipation to ensure reliable operation.
To troubleshoot issues with the BQ24160ARGET, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly sized. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check the switching waveform and ensure that the device is operating within the recommended frequency range. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The BQ24160ARGET is designed to minimize electromagnetic interference (EMI). However, it's still important to consider EMI during design. Use a shielded inductor, keep the layout compact, and use a common-mode choke to reduce EMI. Ensure that the PCB has a solid ground plane and a separate power plane for the input and output. Follow the recommended layout and placement guidelines to minimize EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24160ARGET Overview

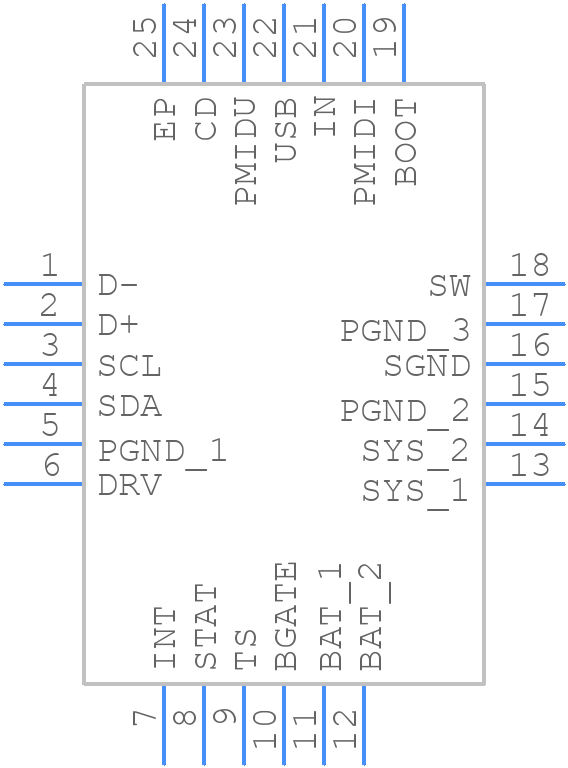

Use the download button to access the BQ24160ARGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
