The recommended layout and placement for the BQ24160RGET involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to place the input capacitors close to the device and use a common ground plane for the input and output.
To optimize the charging profile for your specific battery, you can use the BQ24160RGET's programmable charging parameters, such as the charge voltage, charge current, and termination current. You can also use the device's built-in battery monitoring features, such as the battery temperature monitoring and voltage monitoring, to adjust the charging profile accordingly.
The BQ24160RGET has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources.
To ensure safe and reliable charging with the BQ24160RGET, it's recommended to follow proper charging guidelines, such as using a fuse or PTC thermistor to limit the charging current, using a battery with a built-in protection circuit, and implementing overcharge protection and over-discharge protection.
Yes, the BQ24160RGET can be used with non-standard battery chemistries, but it may require custom configuration and programming. It's recommended to consult with a battery expert and perform thorough testing to ensure safe and reliable charging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24160RGET Overview

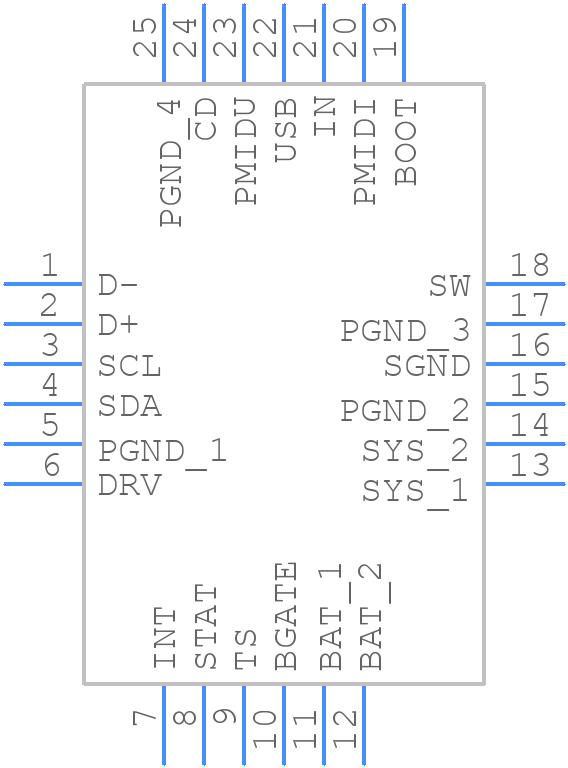

Use the download button to access the BQ24160RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
