The recommended layout and placement for the BQ24161RGET involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to place the input capacitors close to the device and use a common ground plane for the input and output.
To optimize the charging profile for your specific battery, you can use the BQ24161RGET's programmable charging parameters, such as the charge voltage, charge current, and termination current. You can also use the device's built-in battery monitoring features, such as the battery temperature monitoring and voltage monitoring, to adjust the charging profile accordingly.
The BQ24161RGET has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources.
To ensure safe and reliable charging with the BQ24161RGET, it's recommended to follow proper charging guidelines, such as using a fuse or PTC thermistor to limit the charging current, using a battery with a built-in protection circuit, and implementing overcharge protection and short-circuit protection.
To minimize EMI and EMC issues with the BQ24161RGET, it's recommended to use a shielded cable for the USB input, place the device away from other noise-sensitive components, and use a common-mode choke or ferrite bead to filter the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24161RGET Overview

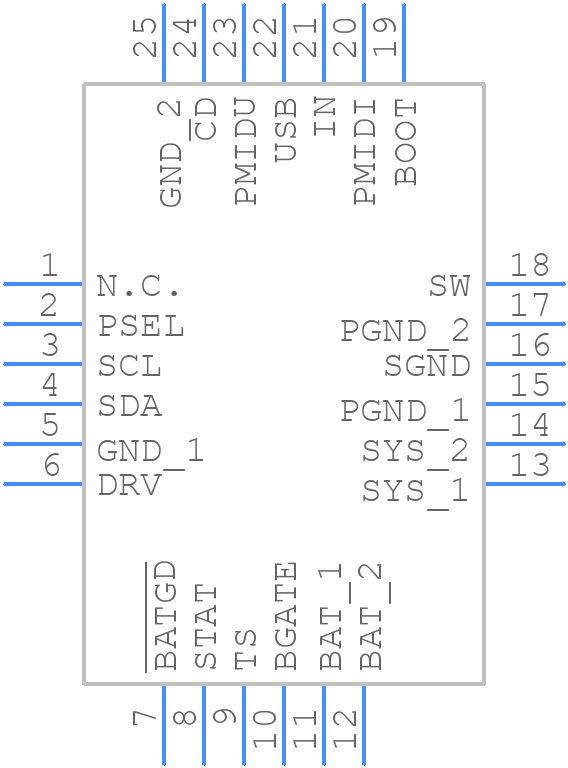

Use the download button to access the BQ24161RGET schematic symbol, PCB footprint, and 3D model.
