Texas Instruments provides a recommended layout guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24163RGET is a flexible charger IC that can be configured for different battery chemistries using external resistors and capacitors. The configuration depends on the specific battery chemistry and its charging requirements. Texas Instruments provides a battery configuration guide in the application note SLUA443, which includes examples for common battery chemistries such as Li-Ion, Li-Poly, and NiMH.
The BQ24163RGET can handle a maximum charging current of 2.5A, but this can be limited by the external components and the thermal design of the system. It's essential to ensure that the system is designed to handle the maximum charging current and that the thermal design is adequate to prevent overheating.
The BQ24163RGET has built-in OVP and UVP circuits that monitor the input voltage and shut down the charger if the voltage exceeds the specified limits. The OVP threshold is typically set to 6.5V, and the UVP threshold is typically set to 4.5V. These thresholds can be adjusted using external resistors.
Yes, the BQ24163RGET can be used for charging multiple batteries in parallel, but it requires additional external components and careful design consideration to ensure that the batteries are charged safely and efficiently. Texas Instruments provides guidelines for parallel battery charging in the application note SLUA445.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24163RGET Overview

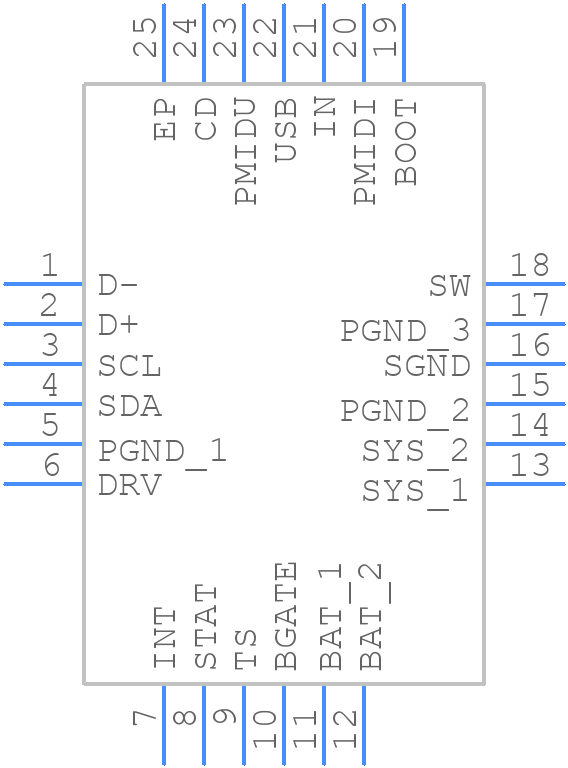

Use the download button to access the BQ24163RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
