The recommended layout and placement for the BQ24165RGET involves placing the IC close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the IC. Additionally, the layout should minimize the loop area of the charging and discharging paths to reduce EMI.
To optimize the charging profile, you need to adjust the charging voltage and current limits based on the battery's chemistry, capacity, and recommended charging profile. You can use the BQ24165RGET's programmable charging voltage and current limits to customize the charging profile for your specific battery.
The BQ24165RGET has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or heat sink, and to keep the device away from high-temperature components.
The BQ24165RGET has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. When the input voltage exceeds the OVP threshold, the device will turn off the charging circuit to protect the system from overvoltage conditions.
To minimize EMI, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components. Additionally, the BQ24165RGET has a spread-spectrum clock feature that can help reduce EMI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24165RGET Overview

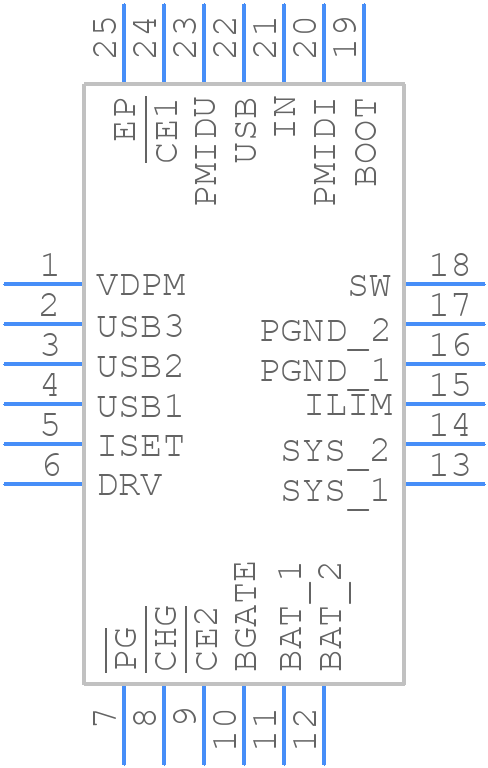

Use the download button to access the BQ24165RGET schematic symbol, PCB footprint, and 3D model.
