Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24167RGER can be configured for different charging scenarios using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and timer. The configuration depends on the specific charging requirements and can be found in the device's datasheet and application notes.
The BQ24167RGER is rated for operation in ambient temperatures ranging from -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required for high-temperature applications.
Yes, the BQ24167RGER can be used for charging multiple batteries in parallel. However, the device's charging current and voltage regulation must be carefully considered to ensure that each battery is charged safely and efficiently. Additional circuitry and control logic may be required to manage the charging process.
Troubleshooting issues with the BQ24167RGER typically involves checking the device's configuration, power supply, and output voltage and current. Texas Instruments provides a troubleshooting guide in the device's datasheet and application notes, which includes common issues and solutions. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24167RGER Overview

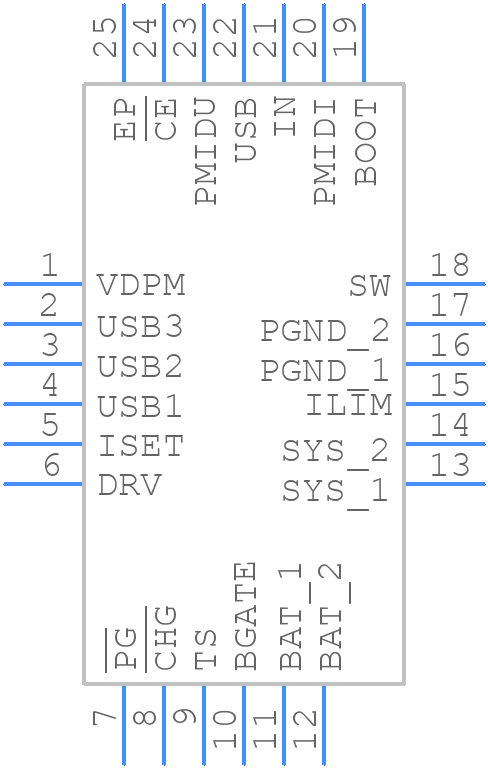

Use the download button to access the BQ24167RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
