The recommended layout and placement for the BQ24167RGET involves placing the device close to the battery, using a 4-layer PCB with a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to place the input capacitors close to the device and use a common ground plane for the input and output.
To optimize the charging profile for your specific battery, you can use the BQ24167RGET's programmable charging parameters, such as the charge voltage, charge current, and termination current. You can also use the device's built-in battery monitoring features, such as the battery temperature monitoring and voltage monitoring, to adjust the charging profile accordingly.
The BQ24167RGET has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources.
To ensure safe and reliable charging with the BQ24167RGET, it's recommended to follow proper charging protocols, such as limiting the charge current and voltage, monitoring the battery temperature and voltage, and using overcharge protection and short-circuit protection. Additionally, it's recommended to follow proper PCB design and layout guidelines to minimize the risk of electrical shock and fire.
Yes, the BQ24167RGET is designed to support multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. The device's programmable charging parameters and built-in battery monitoring features allow it to adapt to different battery chemistries and optimize the charging profile accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24167RGET Overview

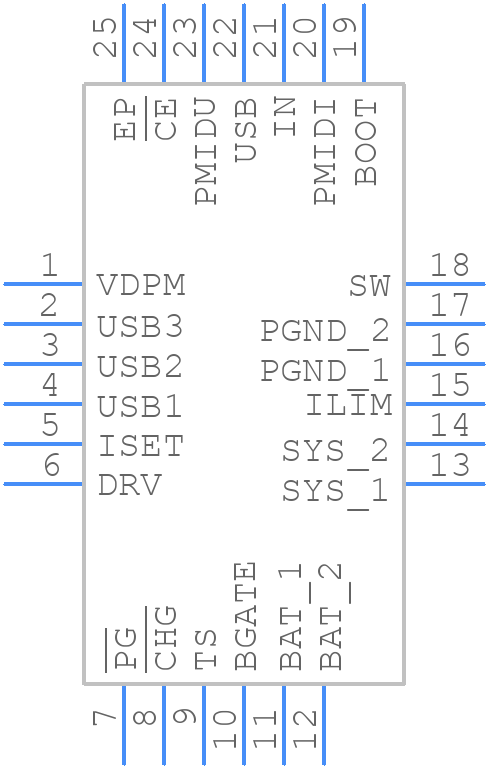

Use the download button to access the BQ24167RGET schematic symbol, PCB footprint, and 3D model.
