Texas Instruments provides a recommended layout and placement guide in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24168RGET can be configured for different charging scenarios using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and timer. The configuration depends on the specific charging scenario, such as USB-BC, USB-C, or proprietary charging. Refer to the datasheet and application notes for more information.
The EN (enable) pin is an active-high input that enables or disables the charging function. When the EN pin is high, the charger is enabled, and when it is low, the charger is disabled. This pin can be used to control the charging function based on system requirements, such as when the system is in sleep mode or when the battery is fully charged.
The BQ24168RGET has a built-in over-voltage protection (OVP) circuit that detects and responds to input voltages above the specified maximum rating. When an OVP event occurs, the device disconnects the input power and prevents damage to the system. The OVP threshold can be adjusted using external resistors.
Yes, the BQ24168RGET is a versatile charger IC that can be used for both USB and non-USB charging applications. It supports various charging protocols, including USB-BC, USB-C, and proprietary charging protocols. The device can be configured to support different charging scenarios using the I2C interface and external components.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24168RGET Overview

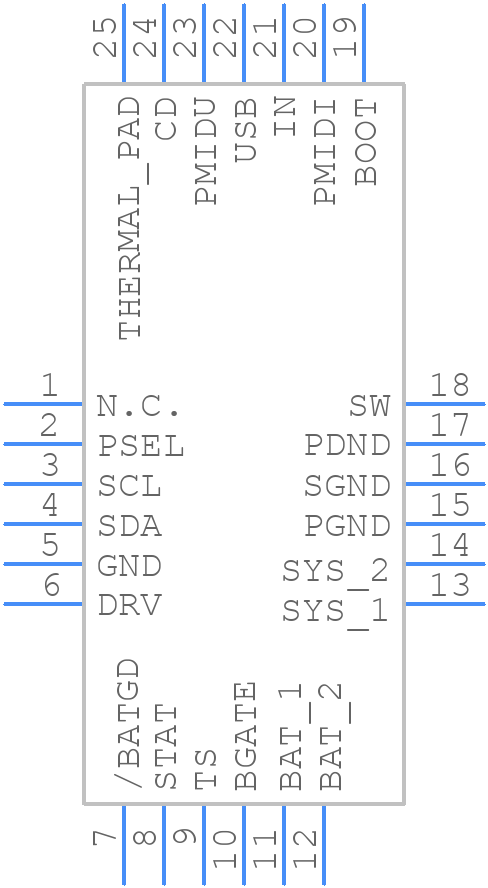

Use the download button to access the BQ24168RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
