Texas Instruments provides a recommended layout and placement guide in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24168YFFR has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using external resistors on the I2C interface or through software control using the I2C interface. Refer to the application note SLUA534 for more information on configuration options and guidelines.
The BQ24168YFFR has a maximum current rating of 2.5A, but this can be limited by the external components, such as the FETs and inductors, used in the design. It's essential to ensure that the external components are rated for the desired maximum current to prevent overheating and damage to the device.
The BQ24168YFFR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The device will automatically shut down if the input voltage exceeds the OVP threshold. Additionally, external OVP circuits can be implemented using external components, such as zener diodes and resistors, to provide additional protection.
The EN (enable) pin is used to enable or disable the charging function of the BQ24168YFFR. When the EN pin is high, the device is enabled, and charging is allowed. When the EN pin is low, the device is disabled, and charging is inhibited. This pin can be used to implement power management and charging control in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24168YFFR Overview

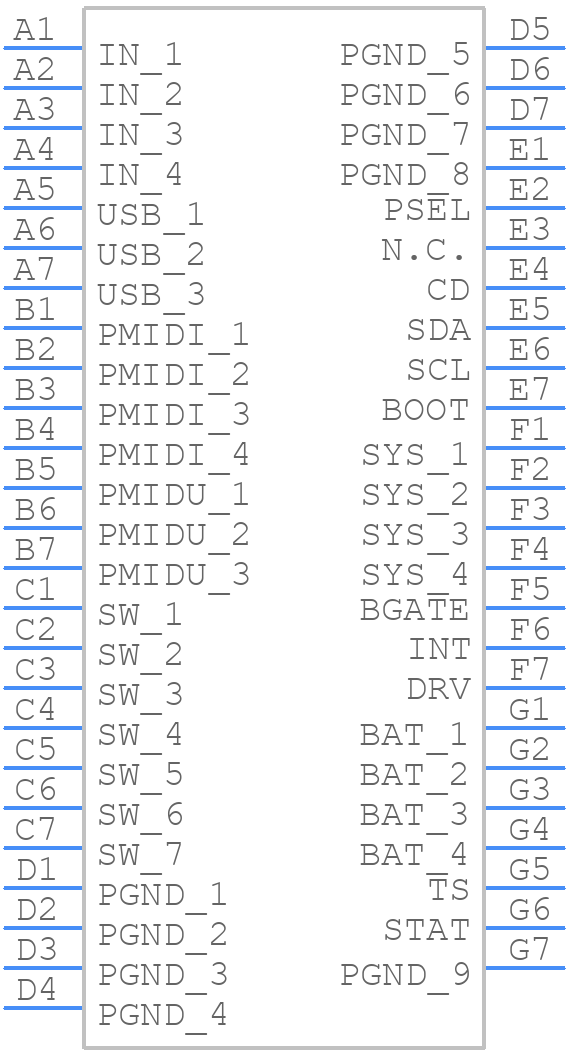

Use the download button to access the BQ24168YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
