Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24180YFFR has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using external resistors on the I2C interface or through software control using the I2C interface. Refer to the application note SLUA443 for more information on configuration options.
The BQ24180YFFR has a maximum current rating of 2.5A, but this can be limited by the external components, such as the FETs and inductors, used in the design. The actual current rating will depend on the specific application and design implementation.
The BQ24180YFFR has built-in OVP and OCP features that can be configured through external resistors or software control. The device can detect over-voltage and over-current conditions and respond by limiting the current or shutting down the charging circuit to prevent damage to the system.
Yes, the BQ24180YFFR can be used in a battery-only configuration, where the device is powered solely by the battery and does not require an external power source. This is useful in applications where the device needs to operate in a low-power mode or when the external power source is not available.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24180YFFR Overview

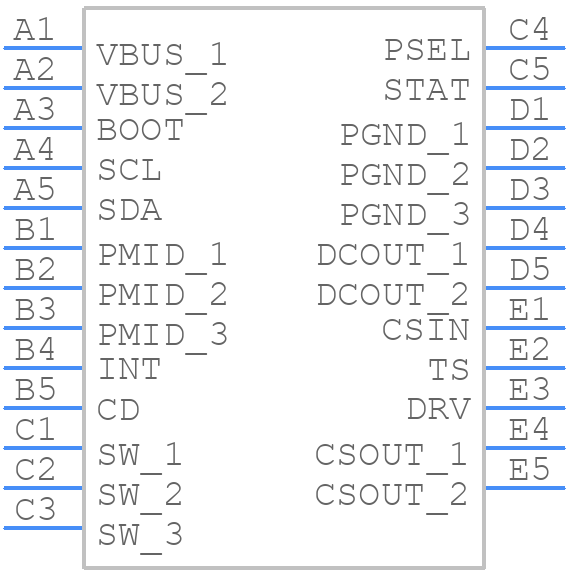

Use the download button to access the BQ24180YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
