BQ24190RGER - Texas Instruments

Description: I2C Controlled 4.5A Single Cell USB / Adaptor Charger

Download BQ24190RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

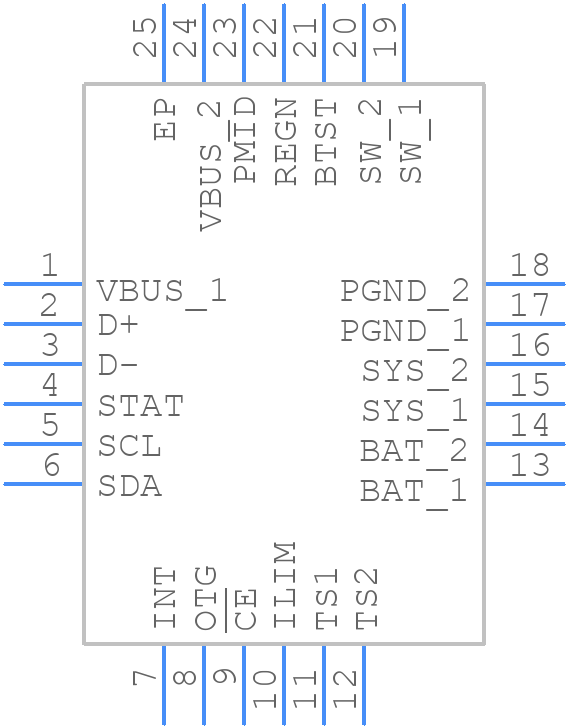

BQ24190RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24190RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN-25-2020-
click to zoom
3D Models
BQ24190RGER - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN-25-2020-
click to zoom

BQ24190RGER Details

  • Manufacturer Part Number:

    BQ24190RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +18V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24190RGER Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the power traces is recommended. Keep the input and output capacitors close to the IC, and use a Kelvin connection for the sense resistors.
  • Choose a sense resistor value that sets the current limit to the desired value. A lower sense resistor value will result in a higher current limit. Use the formula: Rsense = 0.05 / Ilim, where Ilim is the desired current limit in amps.
  • The EN pin is an active-high enable input that allows the device to be turned on and off. Connect EN to a logic high (e.g., VCC) to enable the device, and connect it to a logic low (e.g., GND) to disable it.
  • Use the ISET pin to set the charge current, and the VREG pin to set the output voltage. The device can be configured for various charging profiles, such as constant current, constant voltage, or trickle charge, by adjusting the ISET and VREG pins accordingly.
  • The device has a thermal shutdown feature that turns it off when the junction temperature exceeds 150°C. Ensure good airflow, use a heat sink if necessary, and avoid overheating the device to ensure reliable operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BQ24190RGER Overview

Use the download button to access the BQ24190RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
