BQ24195RGET - Texas Instruments

Description: I2C Controlled 2.5A/4.5A Single Cell Charger with 5.1V 1.3A/2.1A Synchronous Boost Operation

Download BQ24195RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

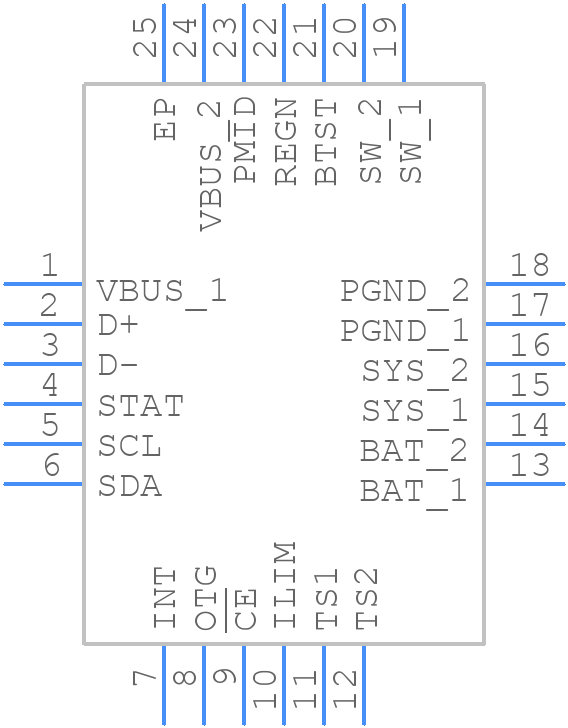

BQ24195RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24195RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN_24
click to zoom
3D Models
BQ24195RGET - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN_24
click to zoom

BQ24195RGET Details

  • Manufacturer Part Number:

    BQ24195RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4.5 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +18V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24195RGET Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the power paths.
  • Use the bq24195EVM evaluation module to test and optimize the charging profile for your specific battery chemistry. The EVM allows you to adjust the charging voltage, current, and termination conditions to optimize performance and safety.
  • The BQ24195RGET is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Yes, but you may need to adjust the charging profile and voltage settings. Consult the datasheet and application notes for guidance on adapting the BQ24195RGET to different battery chemistries and voltage ratings.
  • Follow the guidelines in the datasheet and application notes for proper component selection, PCB layout, and thermal management. Also, ensure that the input voltage and current ratings are not exceeded, and that the device is operated within its specified temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24195RGET Overview

Use the download button to access the BQ24195RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
