BQ24230RGTR - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ24230RGTR - BATT CHARGER, LI-ION, 0.5A, VQFN-16

Download BQ24230RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

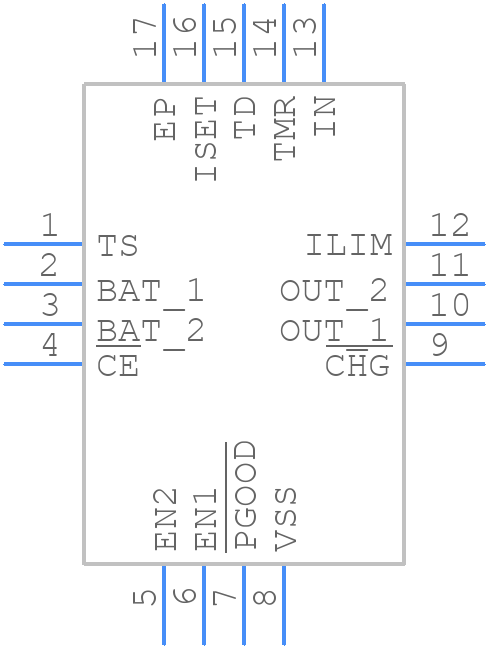

Symbol
BQ24230RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24230RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C-1
click to zoom
3D Models
BQ24230RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C-1
click to zoom

BQ24230RGTR Details

  • Manufacturer Part Number:

    BQ24230RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.4 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    6.4 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24230RGTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Refer to the TI application note 'BQ24230RGTR PCB Layout Guidelines' for more details.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the input capacitor, a 10uF to 22uF capacitor is recommended. For the output capacitor, a 10uF to 47uF capacitor is recommended. Ensure the capacitors are placed close to the IC and have a low ESR.
  • The BQ24230RGTR is rated for operation from -40°C to 85°C. However, the device can be operated up to 105°C with derating. Refer to the datasheet for thermal derating curves.
  • The output voltage is set using the FB pin and an external resistor divider network. The resistor values can be calculated using the formulae provided in the datasheet. For example, for a 5V output, R1 = 10kΩ and R2 = 2.2kΩ.
  • The EN pin is an active-high enable input that allows the device to be turned on and off. Connect the EN pin to a logic high (e.g., VCC) to enable the device, and connect it to a logic low (e.g., GND) to disable the device.
