BQ24232HARGTR - Texas Instruments

Description: USB Friendly 0.5A Li+ Charger with Power-Path, 10.5V OVP

Download BQ24232HARGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

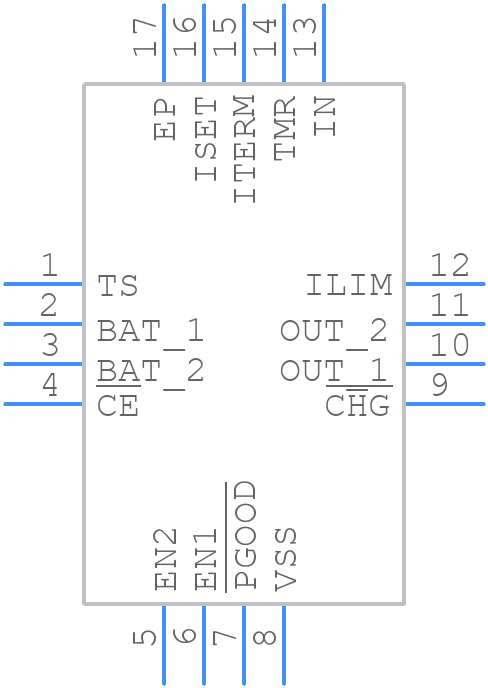

Symbol
BQ24232HARGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24232HARGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C_
click to zoom
3D Models
BQ24232HARGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C_
click to zoom

BQ24232HARGTR Details

  • Manufacturer Part Number:

    BQ24232HARGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.2 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -5 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    10.2 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24232HARGTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24232HARGTR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended layout in the datasheet and application notes.
  • The inductor value depends on the input voltage, output voltage, and maximum current. A good starting point is to use the inductor selection guide in the datasheet, and then fine-tune the value based on the specific application requirements.
  • The BQ24232HARGTR is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Yes, the BQ24232HARGTR is designed to withstand vibrations and can be used in high-vibration environments. However, it's essential to ensure the PCB is properly secured and the components are properly soldered to prevent mechanical stress.
  • Start by checking the input voltage, output voltage, and current. Verify that the IC is properly soldered and the PCB layout is correct. Check for overheating by measuring the temperature of the IC and ensuring proper airflow. Consult the datasheet and application notes for troubleshooting guides.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24232HARGTR Overview

Use the download button to access the BQ24232HARGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242, or try a keyword search, such as Power Management Circuits
