BQ24232HRGTR - Texas Instruments

Description: USB-Friendly Lithium Based Battery Charger With Power-Path For 4.35V Batteries

Download BQ24232HRGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

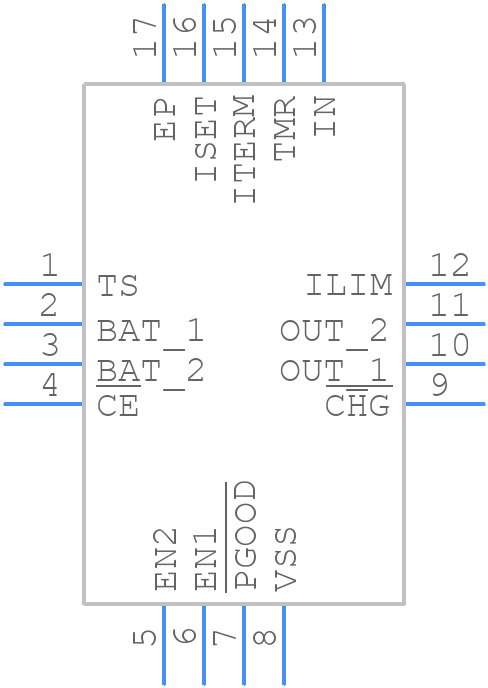

BQ24232HRGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24232HRGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT
click to zoom
3D Models
BQ24232HRGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT
click to zoom

BQ24232HRGTR Details

  • Manufacturer Part Number:

    BQ24232HRGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.2 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    4.45 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24232HRGTR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ24232HRGTR can be found in the Texas Instruments application note 'BQ24232 Layout and Placement Guidelines' (SLUA623). It is essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
  • The inductor value selection depends on the input voltage, output voltage, and maximum current requirements. Texas Instruments provides an inductor selection guide in the BQ24232 datasheet, which can be used to determine the optimal inductor value. Additionally, the TI Power Designer software can be used to simulate and optimize the design.
  • The maximum ambient temperature rating for the BQ24232HRGTR is 85°C. However, the device can operate up to 105°C with derating. It is essential to ensure proper thermal management and heat sinking to maintain reliable operation.
  • The BQ24232HRGTR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Refer to the datasheet for more information on implementing OVP with the BQ24232HRGTR.
