Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, thermal management, and PCB layout to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24250CYFFT can be configured for different charging profiles using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and termination conditions. The datasheet provides a detailed description of the registers and their functions. Additionally, Texas Instruments provides a GUI-based tool, the BQ24250 Evaluation Module, which can be used to configure and monitor the device.
The BQ24250CYFFT is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The datasheet provides a thermal derating curve that shows the maximum allowed junction temperature as a function of ambient temperature.
The BQ24250CYFFT has several built-in safety features, including overvoltage protection, undervoltage protection, and overcurrent protection. Additionally, the device has a fault detection and reporting mechanism that can be used to detect and respond to fault conditions. The datasheet provides a detailed description of the fault detection and reporting mechanism, and the application note SLUA444 provides guidelines for designing a safe and reliable charging system.
The BQ24250CYFFT is designed for charging a single lithium-ion battery cell. However, it can be used for charging multiple battery cells in series by using multiple devices, one for each cell. The devices can be connected in a master-slave configuration, with the master device controlling the charging process and the slave devices following the master's commands. The application note SLUA444 provides more information on using the BQ24250CYFFT for charging multiple battery cells.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24250CYFFT Overview

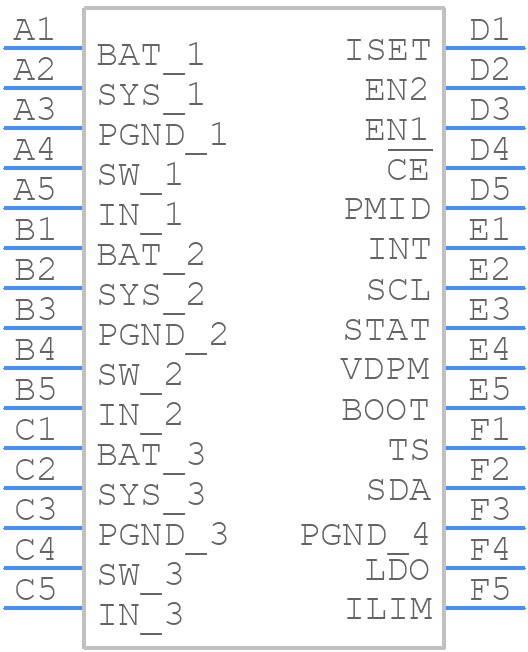

Use the download button to access the BQ24250CYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
