BQ24250RGET - Texas Instruments

Description: 2A Single Input I2C/Standalone Switch-Mode Li-Ion Battery Charger

Download BQ24250RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

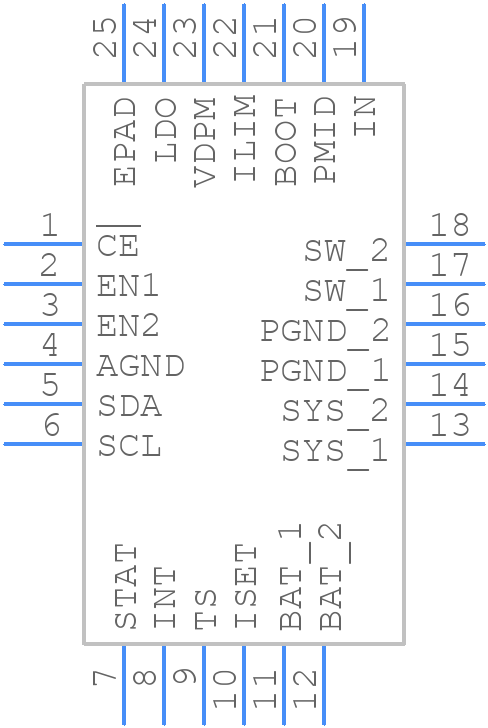

Symbol
BQ24250RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24250RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-1
click to zoom
3D Models
BQ24250RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-1
click to zoom

BQ24250RGET Details

  • Manufacturer Part Number:

    BQ24250RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.5 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.88 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24250RGET Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Refer to the TI application note 'BQ24250RGET PCB Layout Guidelines' for more details.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the input capacitor, a 10uF to 22uF capacitor is recommended. For the output capacitor, a 22uF to 47uF capacitor is recommended. Ensure the capacitors have a low ESR (Equivalent Series Resistance) to minimize power losses.
  • The BQ24250RGET is rated for operation from -40°C to 85°C. However, the device can be operated up to 105°C with derating. Refer to the datasheet for thermal derating curves.
  • The BQ24250RGET has a fixed output voltage of 5V. However, you can use an external resistor divider network to adjust the output voltage. Refer to the datasheet for the resistor values and configuration.
  • The BQ24250RGET can operate with input voltages up to 18V. However, the recommended input voltage range is 6.5V to 14V for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24250RGET Overview

Use the download button to access the BQ24250RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
