Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24250YFFT can be configured for different charging profiles using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and termination conditions. The datasheet provides a detailed description of the registers and their functions, and the application note SLUA443 provides examples of how to configure the device for different charging profiles.
The BQ24250YFFT is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The application note SLUA445 provides guidance on thermal management and derating for high-temperature operation.
To ensure safe and reliable operation of the BQ24250YFFT, it is essential to follow proper design and layout guidelines, including proper thermal management, EMI shielding, and protection against overvoltage, undervoltage, and overcurrent. The device also has built-in safety features such as overcharge protection, over-discharge protection, and short-circuit protection. The application note SLUA446 provides guidance on designing a safe and reliable battery charging system using the BQ24250YFFT.
Yes, the BQ24250YFFT can be used for charging multiple battery cells in series. The device has a built-in balancing function that allows it to charge multiple cells in series while maintaining individual cell voltage monitoring and balancing. The application note SLUA447 provides guidance on designing a multi-cell battery charging system using the BQ24250YFFT.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24250YFFT Overview

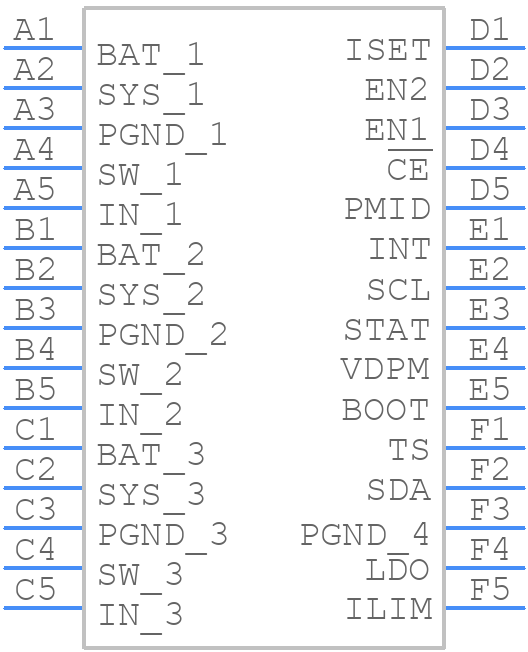

Use the download button to access the BQ24250YFFT schematic symbol, PCB footprint, and 3D model.
