BQ24251RGET - Texas Instruments

Description: Texas Instruments BQ24251RGET, Battery Charger

Download BQ24251RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

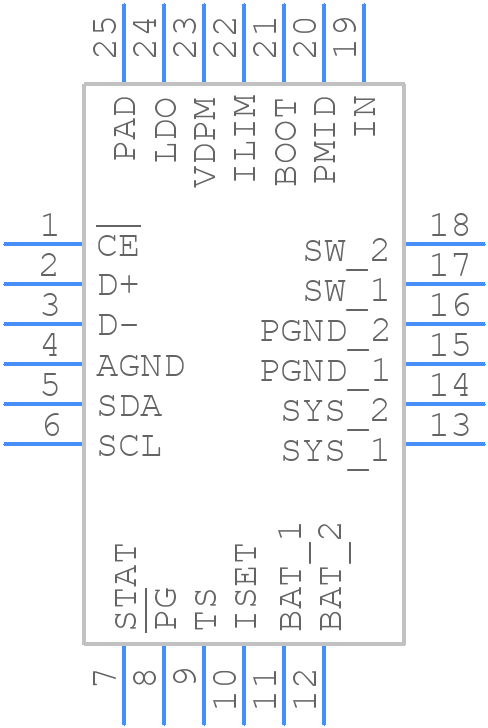

BQ24251RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24251RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H
click to zoom
3D Models
BQ24251RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H
click to zoom

BQ24251RGET Details

  • Manufacturer Part Number:

    BQ24251RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

BQ24251RGET Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Refer to the TI application note 'BQ24251RGET PCB Layout Guidelines' for more details.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the input capacitor, a 10uF to 22uF capacitor is recommended. For the output capacitor, a 10uF to 47uF capacitor is recommended. Ensure the capacitors meet the ripple current and ESR requirements specified in the datasheet.
  • The BQ24251RGET is rated for operation from -40°C to 85°C. However, the device can be operated up to 105°C with derating. Refer to the datasheet for thermal derating curves.
  • The output voltage is set using the FB pin and an external resistor divider network. The resistor values can be calculated using the formulae provided in the datasheet. For example, to set the output voltage to 5V, use R1 = 10kΩ and R2 = 2.2kΩ.
  • The EN pin is an active-high enable input that allows the device to be turned on and off. Connect the EN pin to a logic high (e.g., VCC) to enable the device, and connect it to a logic low (e.g., GND) to disable the device. Use a pull-down resistor to ensure the device is disabled during power-up.
