Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24251YFFR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ24251EVM-796, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA445 for more information on charging profile optimization.
While the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device. Exceeding 15V may cause the device to enter a fault state or even damage the internal components.
The BQ24251YFFR is certified to various safety standards, including UL, IEC, and CE. However, to ensure compliance with specific safety certifications, such as IEC 62133 or UL 2054, you may need to add additional components or design features to your system. Consult the datasheet and application notes for more information on safety certifications and compliance.
The BQ24251YFFR has a thermal shutdown feature to prevent overheating. To ensure reliable operation, it's recommended to provide adequate thermal management, such as a heat sink or thermal pad, to keep the device temperature below 125°C. Refer to the application note SLUA446 for more information on thermal management strategies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24251YFFR Overview

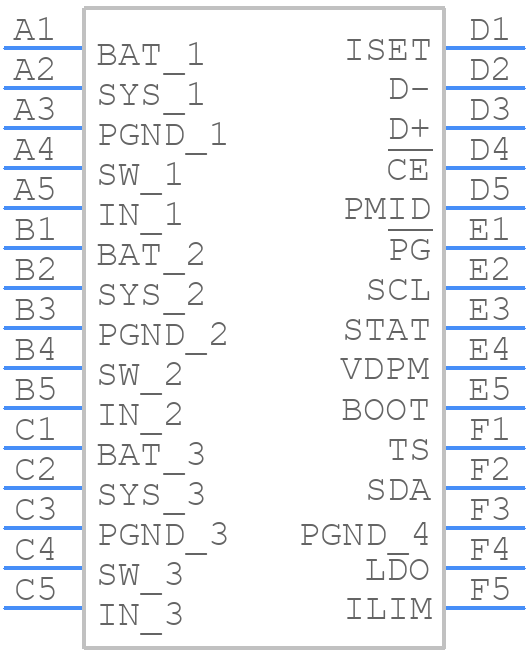

Use the download button to access the BQ24251YFFR schematic symbol, PCB footprint, and 3D model.
