Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24257RGET has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the bq24257-EVM GUI, which allows you to customize the charging profile for your specific battery. You can also refer to the application note SLUA443 for guidelines on optimizing the charging profile.
While the datasheet specifies a maximum input voltage of 20V, it's recommended to limit the input voltage to 18V to ensure reliable operation and prevent damage to the device. Exceeding 18V may cause the device to enter a fault state or even damage the internal components.
The BQ24257RGET has built-in overcharge protection, but it's essential to implement additional safety measures, such as monitoring the battery temperature and voltage, to prevent overcharging. You can also use the device's programmable charging profile to set a maximum charging voltage and current to prevent overcharging.
The EN (enable) pin is used to enable or disable the charging function. When the EN pin is high, the charger is enabled, and when it's low, the charger is disabled. You can use the EN pin to control the charging function through an external signal, such as a power button or a microcontroller output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24257RGET Overview

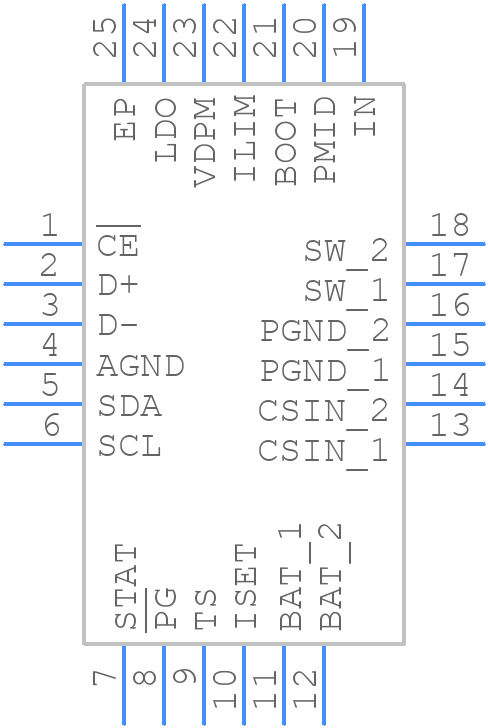

Use the download button to access the BQ24257RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242,
or try a keyword search, such as Power Management Circuits
