Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24257YFFR can be configured for different charging profiles using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and termination conditions. The datasheet provides a detailed description of the registers and their functions. Additionally, Texas Instruments provides a GUI-based tool, the BQ24257EVM GUI, which can be used to configure and monitor the device.
The BQ24257YFFR is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The datasheet provides a thermal derating curve that shows the maximum junction temperature and power dissipation at different ambient temperatures.
To ensure safe and reliable operation of the BQ24257YFFR, it is essential to follow proper design and layout guidelines, including thermal management, EMI shielding, and protection against overvoltage, undervoltage, and overcurrent. Additionally, the device should be used with a suitable battery management system that monitors the battery state of charge, voltage, and temperature.
Yes, the BQ24257YFFR can be used for charging multiple batteries in parallel. However, it is essential to ensure that the batteries are identical and have the same charging characteristics. The device can be configured to charge multiple batteries in parallel by connecting the batteries in parallel and using a single charging input. The datasheet provides guidelines for charging multiple batteries in parallel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24257YFFR Overview

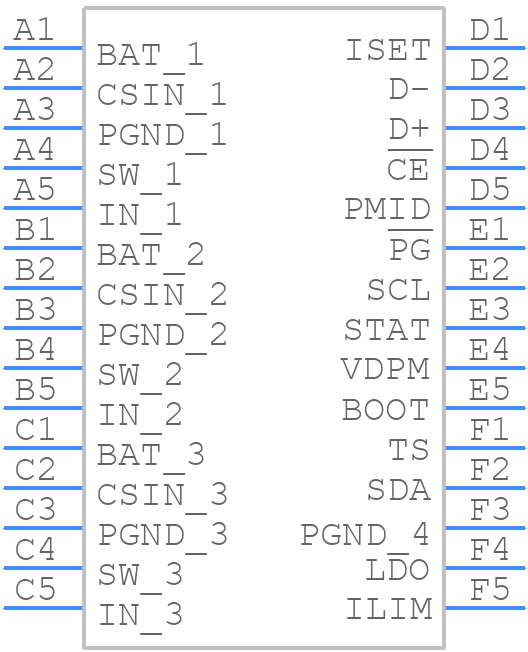

Use the download button to access the BQ24257YFFR schematic symbol, PCB footprint, and 3D model.
