BQ24261MRGET - Texas Instruments

Description: Battery Charger Li-Ion/Li-Pol 3000mA 3.5V to 4.44V 24-Pin VQFN EP T/R

Download BQ24261MRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

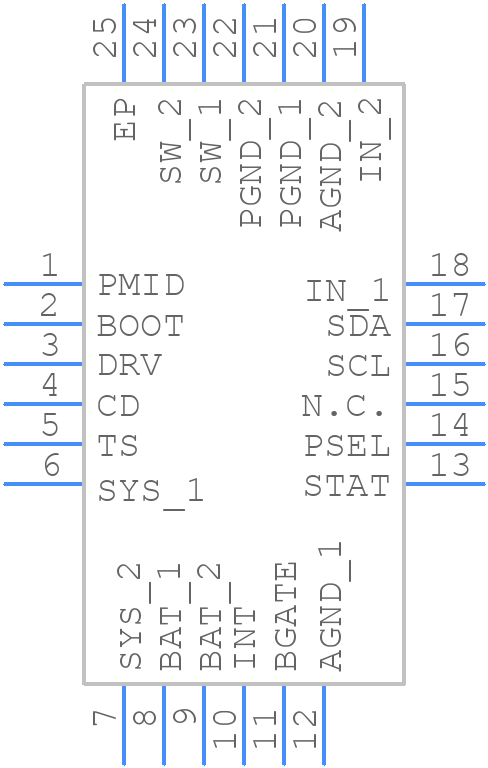

BQ24261MRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24261MRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-021
click to zoom
3D Models
BQ24261MRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-021
click to zoom

BQ24261MRGET Details

  • Manufacturer Part Number:

    BQ24261MRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    RECHARGE THRESHOLD VOLTAGE IS 0.12V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.12V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24261MRGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24261MRGET involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
  • The inductor value depends on the input voltage, output voltage, and maximum current. A good starting point is to use the inductor selection guide in the datasheet or TI's online inductor selection tool. You can also use the following formula: L (μH) = (Vin - Vout) / (ΔI * f * ΔIL).
  • The maximum ambient temperature for the BQ24261MRGET is 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The BQ24261MRGET has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold is set by the voltage on the OVP pin, which should be set to 1.5V to 2.5V above the output voltage.
  • Yes, the BQ24261MRGET is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and has been tested for robustness and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required standards.
