BQ24261MYFFR - Texas Instruments

Description: 1S, 3A, 30V, Single-Input Switchmode Li-Ion Battery Charger with Power Path and USB-OTG

Download BQ24261MYFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

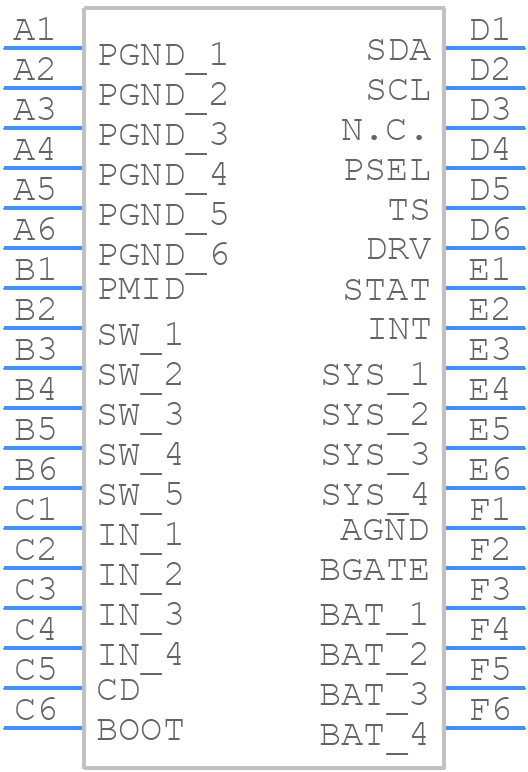

BQ24261MYFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24261MYFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0036_2021
click to zoom
3D Models
BQ24261MYFFR - Texas Instruments - 3D model - BGA - YFF0036_2021
click to zoom

BQ24261MYFFR Details

  • Manufacturer Part Number:

    BQ24261MYFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSBGA-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    RECHARGE THRESHOLD VOLTAGE IS 0.12V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-XBGA-B36

  • JESD-609 Code:

    e1

  • Length:

    2.455 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.12V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.455 mm

BQ24261MYFFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BQ24261MYFFR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ24261EVM-796, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA445 for more information on charging profile optimization.
  • The BQ24261MYFFR has an operating ambient temperature range of -40°C to 85°C, but it can be derated for higher temperatures. Refer to the datasheet for more information on temperature derating and thermal management.
  • The BQ24261MYFFR has built-in OVP and UVP features, but you need to implement external components to set the voltage thresholds. Refer to the application note SLUA446 for more information on implementing OVP and UVP with the BQ24261MYFFR.
  • The recommended input capacitor value and type depend on the input voltage and current requirements. Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, and a voltage rating of 10V to 25V. Refer to the application note SLUA447 for more information on input capacitor selection.
