A good PCB layout for the BQ24271RGET involves placing the IC close to the battery, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
TI provides a component selection guide in the datasheet and application notes. The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and maximum current. Engineers can use TI's online tools, such as the Power Stage Designer, to help with component selection.
The BQ24271RGET has a thermal shutdown feature that protects the device from overheating. Engineers should ensure good thermal design, including a heat sink or thermal pad, and follow TI's guidelines for thermal management. The device operates reliably over a temperature range of -40°C to 125°C.
The BQ24271RGET has built-in OVP and UVP features. Engineers can set the OVP threshold using an external resistor divider network, and the UVP threshold is set internally. TI provides guidelines for implementing OVP and UVP in the datasheet and application notes.
The BQ24271RGET is designed to meet EMI and EMC regulatory standards. Engineers should follow TI's guidelines for PCB layout, component selection, and shielding to minimize EMI. TI also provides EMI and EMC test reports and compliance information in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24271RGET Overview

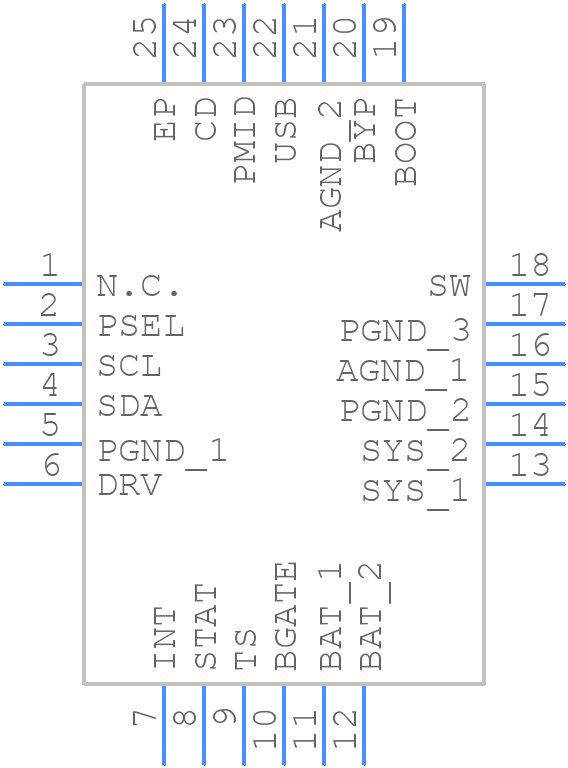

Use the download button to access the BQ24271RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
