BQ24296RGET - Texas Instruments

Description: I2C Controlled 3A Single Cell USB NVDC-1 Charger with Adjustable Voltage USB OTG

Download BQ24296RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

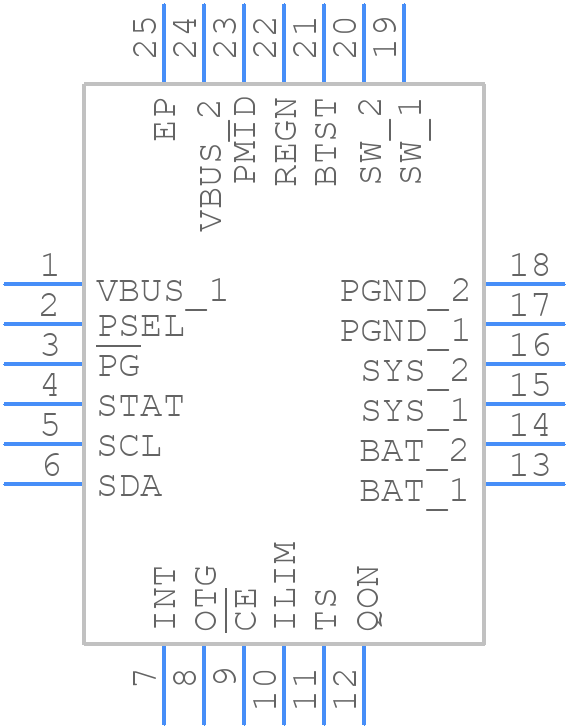

BQ24296RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24296RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_H=1
click to zoom
3D Models
BQ24296RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_H=1
click to zoom

BQ24296RGET Details

  • Manufacturer Part Number:

    BQ24296RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB CHARGER

  • Input Voltage-Max:

    6.2 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3000 mA

  • Supply Voltage-Max (Vsup):

    6.2 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24296RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24296RGET involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The inductor value depends on the input voltage, output voltage, and maximum current. TI provides an inductor selection guide in the datasheet, and online tools like the TI Power Designer can help with inductor selection.
  • The BQ24296RGET is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the BQ24296RGET is designed to work with battery chargers. It has a built-in charger detector and can be configured to work with various charging protocols. Consult the datasheet and application notes for more information.
  • The BQ24296RGET has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider. The OVP threshold can be set by selecting the right resistor values. Consult the datasheet and application notes for more information.
