BQ24298RTWR - Texas Instruments

Description: I2C Controlled Single Cell 3A USB Charger with NVDC Power Path and Adjustable Voltage USB OTG

Download BQ24298RTWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

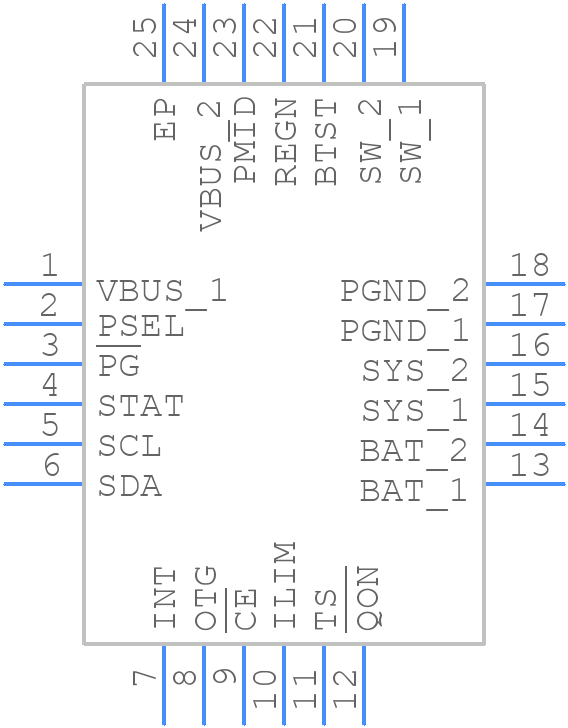

BQ24298RTWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24298RTWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom
3D Models
BQ24298RTWR - Texas Instruments - 3D model - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom

BQ24298RTWR Details

  • Manufacturer Part Number:

    BQ24298RTWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB CHARGER

  • Input Voltage-Max:

    6.2 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    6.2 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24298RTWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Refer to the TI application note 'BQ24298RTWR PCB Layout Guidelines' for more details.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the output voltage. Select capacitors with low ESR (Equivalent Series Resistance) and a capacitance value of at least 10uF for the input and 22uF for the output.
  • The BQ24298RTWR is rated for operation from -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating, but this may affect its reliability and lifespan.
  • Use the I2C interface to configure the charging profile, including the charge voltage, charge current, and termination current. Refer to the datasheet and the TI application note 'BQ24298RTWR Programming Guide' for more details.
  • The EN (Enable) pin is used to enable or disable the charging function. Tie the EN pin to a logic high (VCC) to enable charging, or tie it to a logic low (GND) to disable charging. You can also use the EN pin to implement a power button or a charging enable signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24298RTWR Overview

Use the download button to access the BQ24298RTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
