Battery over-voltage protection(Min/Max)(V) : 4.35 and 4.35
Adjustable Threshold:
NO
Analog IC - Other Type:
LINEAR BATTERY CHARGER
Input Voltage-Max:
30 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.08,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.4 mA
Supply Voltage-Max (Vsup):
30 V
Supply Voltage-Min (Vsup):
3.3 V
Supply Voltage-Nom (Vsup):
4 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.7V
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
BQ24300DSGR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUAAC4, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24300DSGR is designed to work with various battery chemistries, including Li-ion, Li-polymer, and NiMH. To configure the device for a specific battery chemistry, refer to the application note SLUAAC3, which provides guidelines for setting the voltage and current thresholds, as well as the charge/discharge timing.
The BQ24300DSGR is rated for operation in ambient temperatures ranging from -40°C to 85°C. However, the device's performance and accuracy may be affected at extreme temperatures. It is recommended to consult the datasheet and application notes for specific guidance on temperature-related considerations.
Yes, the BQ24300DSGR can be used with battery packs that have multiple cells in series and/or parallel. However, the device's configuration and settings may need to be adjusted accordingly. Refer to the application note SLUAAC2, which provides guidelines for configuring the device for multi-cell battery packs.
Texas Instruments provides a troubleshooting guide in the application note SLUAAC5, which covers common issues and their possible causes, as well as steps for debugging and resolving problems. Additionally, the device's datasheet and user guide provide information on error detection and correction mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24300DSGR Overview

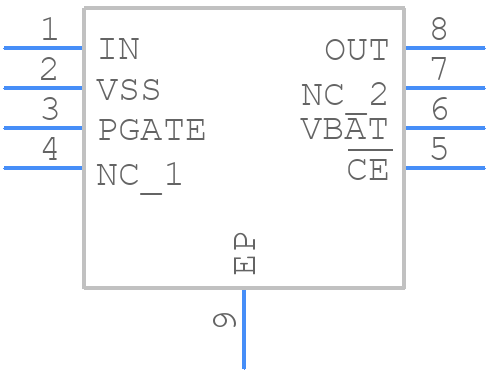

Use the download button to access the BQ24300DSGR schematic symbol, PCB footprint, and 3D model.
