Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the high-current paths short and wide, using thermal vias, and separating the high-power and low-power sections of the board.
The sense resistor value depends on the maximum current rating of the battery and the desired accuracy. A general rule of thumb is to choose a sense resistor value that results in a voltage drop of around 10-50 mV at the maximum current rating. TI provides a sense resistor calculator tool to help with the selection.
The EN (enable) pin is used to enable or disable the battery protection function. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown function or to connect to a microcontroller for dynamic control.
The FLAG pin is an open-drain output that indicates a fault condition, such as overcharge, over-discharge, or over-current. The FLAG pin should be connected to a pull-up resistor and a microcontroller input to detect the fault condition. The microcontroller can then take appropriate action, such as shutting down the system or alerting the user.
The maximum voltage rating for the BQ24316DSGT is 42 V, which is the maximum voltage that can be applied to the VCC pin. However, the device can protect batteries with higher voltage ratings, such as 3S or 4S Li-ion batteries, by using an external voltage divider or voltage regulator.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24316DSGT Overview

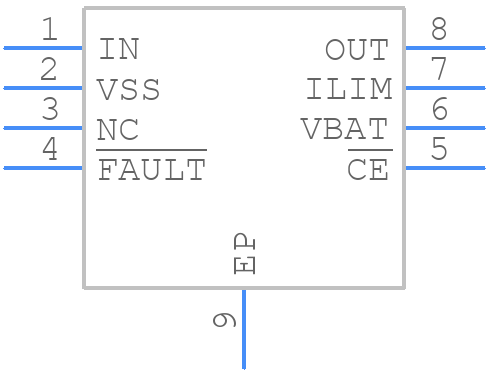

Use the download button to access the BQ24316DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ243,
or try a keyword search, such as Power Management Circuits
