RESET THRESHOLD VOLTAGE IS 6.3V; POWER ON RESET GENERATOR
Adjustable Threshold:
NO
Analog IC - Other Type:
LINEAR BATTERY CHARGER
Input Voltage-Max:
30 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.08,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.25 mA
Supply Voltage-Max (Vsup):
30 V
Supply Voltage-Min (Vsup):
3.3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+5.5V
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
BQ24380DSGT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLUA645. It's essential to follow these guidelines to minimize noise, ensure proper thermal performance, and optimize the device's functionality.
The sense resistor value depends on the desired current sensing range and the input voltage. TI provides a sense resistor calculation tool (SLVCAT) and an application note (SLUA644) to help with the selection process. Typically, a 1-mΩ to 10-mΩ sense resistor is used for most applications.
The EN (Enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to reset the device. It's recommended to connect EN to a logic-level input or a pull-up resistor to ensure proper operation.
The FAULT pin is an open-drain output that indicates a fault condition, such as overcurrent, overvoltage, or undervoltage. When a fault occurs, the FAULT pin is pulled low. The device will automatically recover from the fault condition when the fault is removed. It's recommended to connect the FAULT pin to a logic-level input or a pull-up resistor to ensure proper operation.
The recommended input capacitor value is 10 μF to 22 μF, with a voltage rating of 25 V or higher. A low-ESR ceramic capacitor (e.g., X5R or X7R) is recommended to minimize noise and ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24380DSGT Overview

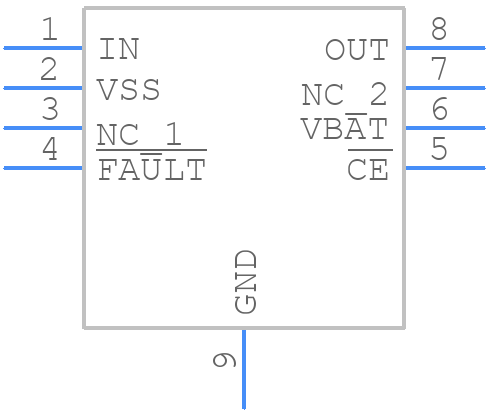

Use the download button to access the BQ24380DSGT schematic symbol, PCB footprint, and 3D model.
