BQ24381DSGR - Texas Instruments

Description: Overvoltage/Overcurrent Protection IC and Li+ Charger Front End Protection IC with LDO Mode, 7.1 OVP

Download BQ24381DSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

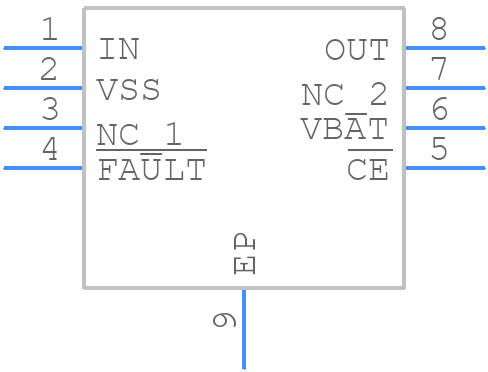

BQ24381DSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24381DSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A
click to zoom
3D Models
BQ24381DSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A
click to zoom

BQ24381DSGR Details

  • Manufacturer Part Number:

    BQ24381DSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 7.1V; POWER ON RESET GENERATOR

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    30 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.3 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ24381DSGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet (section 10.1) and in the application note SLUA645. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
  • The sense resistor value depends on the maximum current and voltage of your system. TI provides a sense resistor calculation formula in the datasheet (section 7.3.1). You can also use the BQ24381 Evaluation Module (EVM) as a reference design.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to reset the device. See the datasheet (section 7.3.2) for more information.
  • The BQ24381 has built-in OVP and UVP features. For OVP, the device will latch off when the input voltage exceeds the OVP threshold (typically 28V). For UVP, the device will latch off when the input voltage falls below the UVP threshold (typically 6V). You can adjust these thresholds using external resistors (see datasheet section 7.3.3).
  • The FAULT pin is an open-drain output that indicates when a fault condition occurs, such as overcurrent, overvoltage, or undervoltage. You can connect this pin to a microcontroller or other logic to take action when a fault is detected. See the datasheet (section 7.3.4) for more information.
