BQ24600RVAR - Texas Instruments

Description: Synchronous Switch-Mode Li-Ion or Li-Polymer Battery Charger

Download BQ24600RVAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

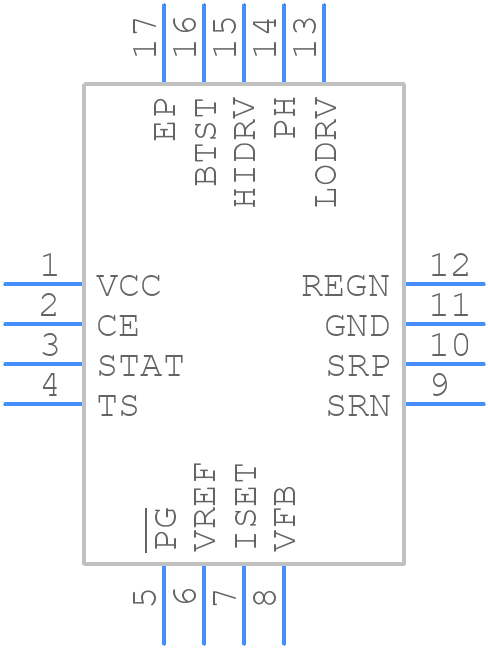

BQ24600RVAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24600RVAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RVA(S-PVQFN-N16)
click to zoom
3D Models
BQ24600RVAR - Texas Instruments - 3D model - Quad Flat No-Lead - RVA(S-PVQFN-N16)
click to zoom

BQ24600RVAR Details

  • Manufacturer Part Number:

    BQ24600RVAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    5 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.35

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24600RVAR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat. Refer to the TI application note 'BQ24600RVAR PCB Layout Guidelines' for more details.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10 μH). Consider the inductor's physical size, core material, and operating frequency. TI's 'Inductor Selection Guide for BQ24600RVAR' can help with the selection process.
  • The BQ24600RVAR can handle input voltages up to 32 V, but it's recommended to keep the input voltage below 28 V to ensure reliable operation and minimize stress on the device.
  • Use the FB pin to set the output voltage. Connect a resistive divider from the output voltage to the FB pin, and calculate the resistor values using the formula provided in the datasheet. The output voltage can be adjusted from 0.8 V to 15 V.
  • The thermal derating curve is not explicitly provided in the datasheet, but it can be estimated using the junction-to-ambient thermal resistance (RθJA) value of 30°C/W. Derating starts at 125°C, and the device should be operated below 100°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24600RVAR Overview

Use the download button to access the BQ24600RVAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ246, or try a keyword search, such as Power Management Circuits
