BQ24610RGET - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ24610RGET . - Battery Charger for 6 Cells of Li-Ion, Li-Pol battery, 28V input, 10 A charge, QFN-24

Download BQ24610RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

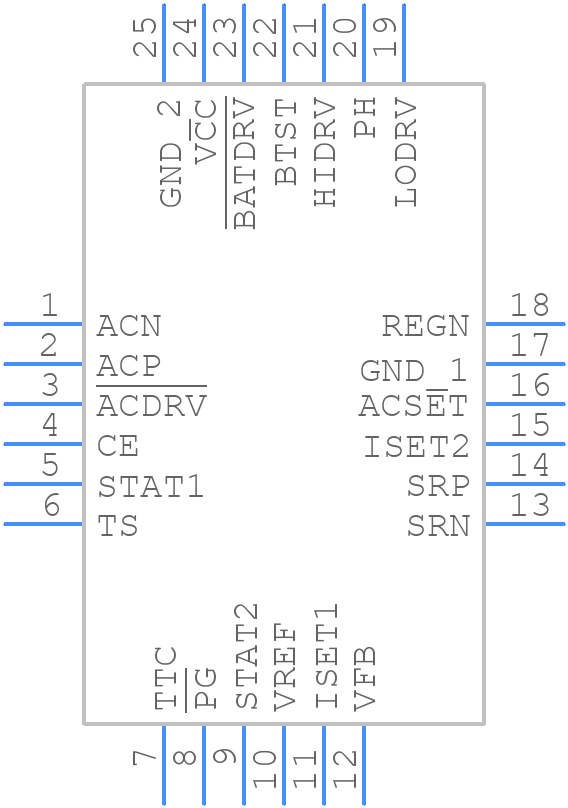

Symbol
BQ24610RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24610RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
BQ24610RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

BQ24610RGET Details

  • Manufacturer Part Number:

    BQ24610RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.85V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24610RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24610RGET involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and maximum current. TI provides a component selection guide in the datasheet and application notes, and online tools like the TI Power Stage Designer can also be used to aid in component selection.
  • The BQ24610RGET is rated for operation from -40°C to 125°C. High ambient temperatures can affect the device's performance, reducing its efficiency and maximum current capability. Ensure proper thermal design and heat sinking to maintain optimal performance.
  • The BQ24610RGET has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will limit the output current to prevent damage in the event of an overload or short-circuit condition.
  • The recommended startup sequence for the BQ24610RGET involves applying the input voltage, then the enable signal, and finally the clock signal. This ensures that the device is properly biased and configured before starting the switching operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24610RGET Overview

Use the download button to access the BQ24610RGET schematic symbol, PCB footprint, and 3D model.
