A good PCB layout for the BQ24616RGER involves placing the device close to the battery, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The selection of external components for the BQ24616RGER depends on the specific application requirements. For the inductor, consider the maximum current rating, inductance value, and DC resistance. For the capacitors, consider the voltage rating, capacitance value, and ESR. TI provides a component selection guide in the datasheet and application notes.
The BQ24616RGER is rated for operation from -40°C to 125°C. High temperatures can affect the device's performance, reducing its efficiency and increasing its power losses. It's essential to ensure proper thermal management, such as using a heat sink or a thermal pad, to maintain a safe operating temperature.
The BQ24616RGER has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The recommended settings depend on the specific application requirements, but a typical value for the OCP threshold is 1.5A to 2A.
The BQ24616RGER and BQ24650 are both high-performance battery charger ICs, but they have different features and specifications. The BQ24616RGER has a higher maximum charging current (3A vs. 2A) and a wider input voltage range (5V to 24V vs. 5V to 18V). The BQ24650 has a more advanced feature set, including a built-in USB OTG detector and a VBUS discharge function.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24616RGER Overview

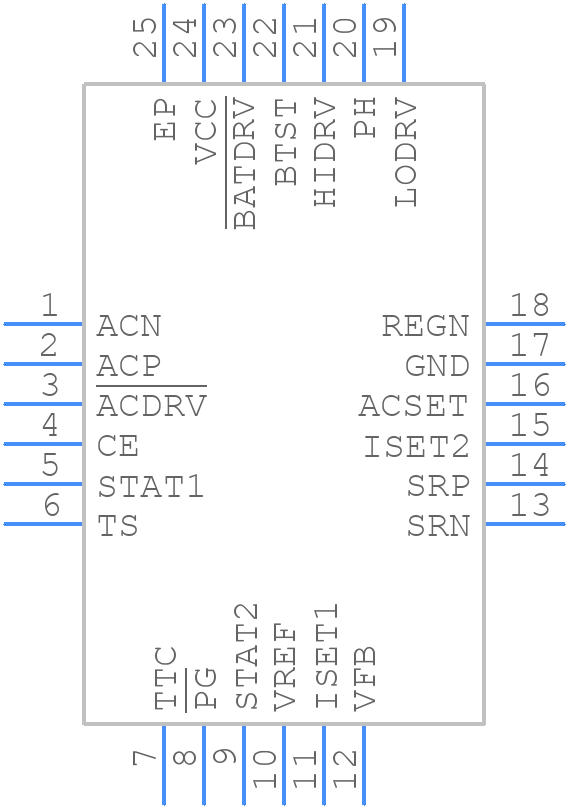

Use the download button to access the BQ24616RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ246,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
