BQ24617RGER - Texas Instruments

Description: Stand-Alone Synchronous Switch-Mode Li-Ion or Li-Polymer Battery Charger with System Power Selector and Low Iq

Download BQ24617RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

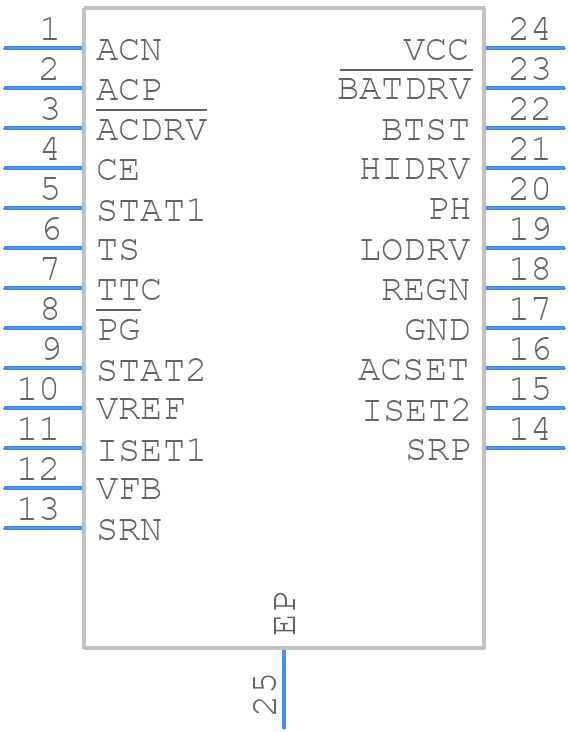

BQ24617RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24617RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B_1
click to zoom
3D Models
BQ24617RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B_1
click to zoom

BQ24617RGER Details

  • Manufacturer Part Number:

    BQ24617RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.85V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24617RGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24617RGER involves placing the device close to the battery, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane for the battery voltage.
  • The sense resistor value depends on the maximum charge current and the desired accuracy. A good starting point is to use the formula Rsense = 0.1 ohms for a 1A charge current. Then, adjust the value based on the specific requirements of your application.
  • The EN (enable) pin is used to turn the charger on and off. When EN is high, the charger is enabled, and when EN is low, the charger is disabled. This pin can be connected to a GPIO pin of a microcontroller to control the charging process.
  • The BQ24617RGER has a built-in thermistor input (TS pin) that can be connected to a negative temperature coefficient (NTC) thermistor. The thermistor's resistance varies with temperature, and the BQ24617RGER can detect this variation to monitor the battery temperature.
  • The BQ24617RGER is a high-power charger with a wide input voltage range and a high level of integration. It's similar to other chargers like the BQ24650, but with a higher charge current capability and additional features like battery temperature monitoring.
