A good PCB layout for the BQ24630RGET involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
When selecting an inductor for the BQ24630RGET, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes power loss.
The BQ24630RGET is rated for operation up to 105°C ambient temperature, but the device's junction temperature should not exceed 125°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
While the BQ24630RGET is designed for 12V and 24V input voltages, it can be used with other input voltages with some modifications. However, this may require adjustments to the component values and PCB layout, and may affect the device's performance and efficiency.
To troubleshoot issues with the BQ24630RGET, start by verifying the input voltage, checking for proper component installation and PCB layout, and ensuring that the device is properly configured. Use an oscilloscope to monitor the device's internal signals and output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24630RGET Overview

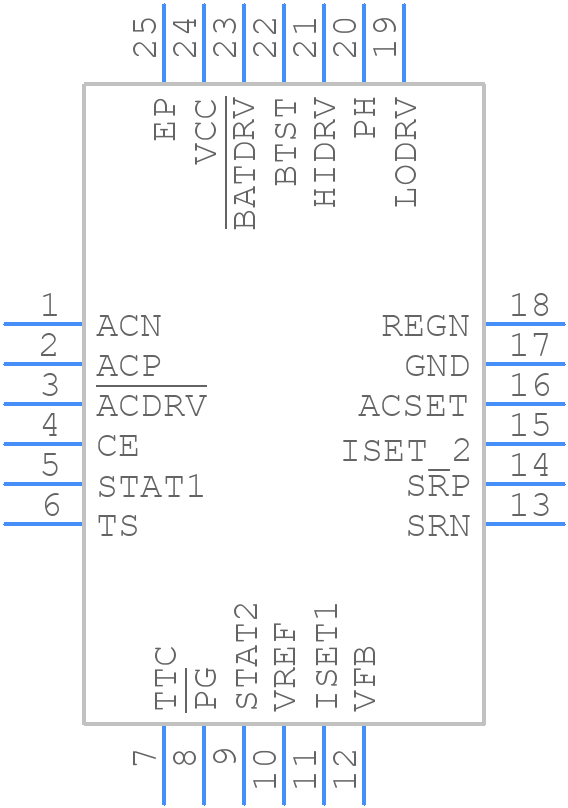

Use the download button to access the BQ24630RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ246,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
